0420- 十字頭螺絲起子 Screwdriver- Phillips Tip (Octagonal Handle)
0420-十字頭螺絲起子 Screwdriver- Phillips Tip (Octagonal Handle)
- AVAILABLE ON STUBBY, STANDARD, EXTRA LONG/
- TOURNEVIS
- Śrubokręt
- Schraubendreher
- destornillador
- مفك براغي
- ไขควง
- Made by SNCMVH Material of Screwdriver Tip Steel Material
- Handle Introduction-(Ratchet & Screwdriver)
- ANSI B 107.5 DIN-ISO
PHILLIPS
| 0420 | SHAFT LENGTH mm | OVERALL LENGTH mm |  g |  pcs |
|---|---|---|---|---|
| PH0-3 | 75 | 145 | 22 | 12 |
| PH1-3 | 75 | 173 | 30 | 12 |
| PH1-4 | 100 | 198 | 58 | 12 |
| PH1-8 | 200 | 298 | 90 | 12 |
| PH2-4 | 100 | 209 | 62 | 12 |
| PH2-5 | 125 | 240 | 72 | 12 |
| PH2-6 | 150 | 259 | 90 | 12 |
| PH2-8 | 200 | 309 | 110 | 12 |
| PH3-6 | 150 | 269 | 140 | 12 |
| PH3-8 | 200 | 319 | 160 | 6 |
| PH4-8 | 200 | 319 | 169 | 6 |

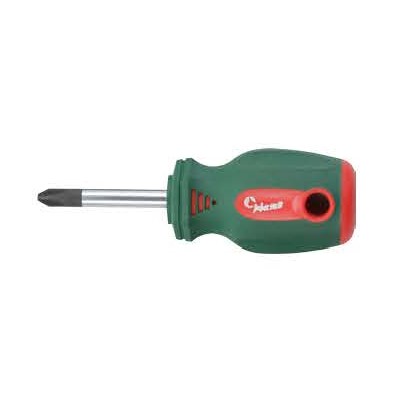

STUBBY
| 0420 | SHAFT LENGTH mm | OVERALL LENGTH mm | g | pcs |
|---|---|---|---|---|
| PH1-1 | 38 | 98 | 44 | 12 |
| PH2-1 | 38 | 98 | 46 | 12 |

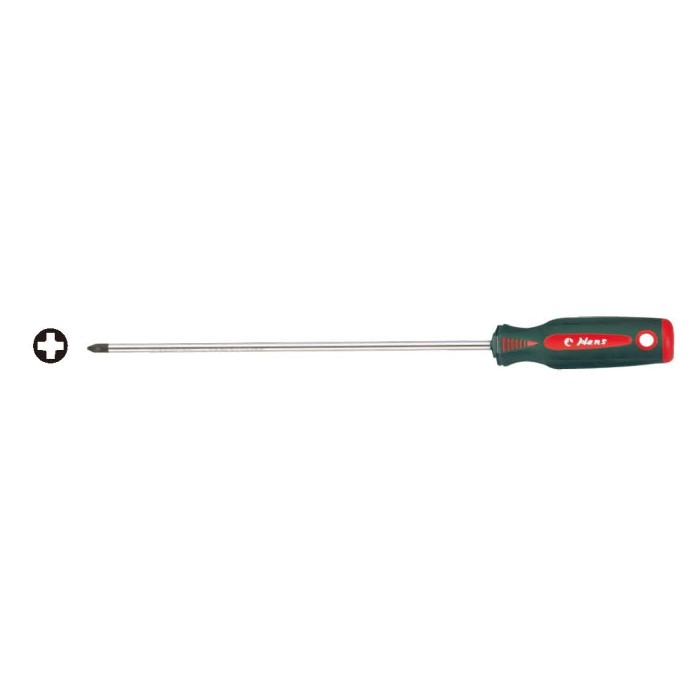

EXTRA LONG
| 0420 | SHAFT LENGTH mm | OVERALL LENGTH mm | g | pcs |
|---|---|---|---|---|
| PH1-10 | 250 | 348 | 110 | 12 |
| PH1-12 | 300 | 398 | 120 | 12 |
| PH2-10 | 250 | 365 | 130 | 6 |
| PH2-12 | 300 | 409 | 146 | 6 |
| PH2-16 | 400 | 509 | 182 | 6 |
