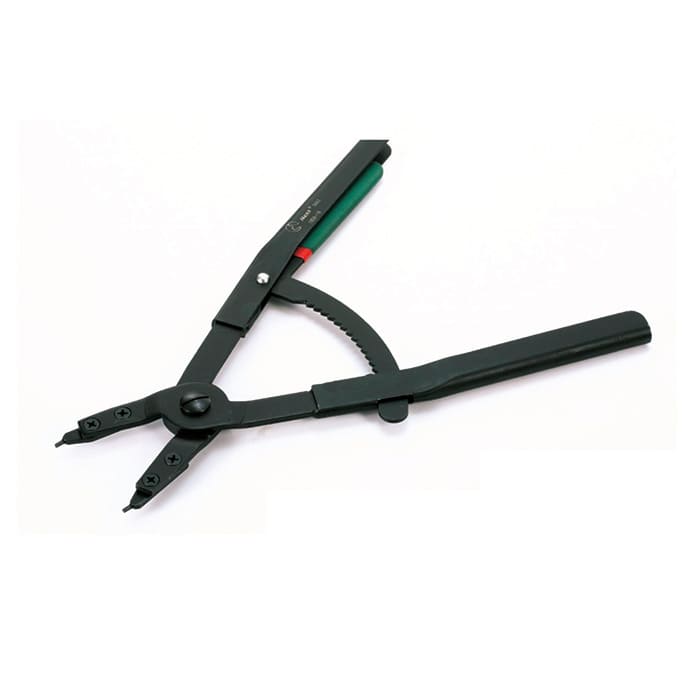

1850- 特長直型內扣環鉗 Internal Circlip Plier- Straight Pattern-(Extra Long)
1850- 特長直型內扣環鉗 Internal Circlip Plier- Straight Pattern- (Extra Long)
- Pince pour circlips intérieurs
- Szczypce proste do pierścieni wewnętrznych
- Gerade Innenringzange
- Alicates para arandelas interiores
- كماشة حلقة داخلية مستقيمة
- คีมถ่างแหวนด้านในแบบตรง
- 直型內扣環鉗
- 1850-16/ -20
- Made by Chromium Vanadium Nickel
- Pliers and their Uses- (A-E)
- Handle Introduction- (Plier, Torque Wrench and Wrench)
- Extra long circlip pliers are made for handling big objects. They come with a teeth-loaded ratchet mechanism, which allows the ring to be compressed or expanded in gradual moves. The tool locks once the desired size is reached and this locking feature makes it possible to maintain control of the object without needing to put too much pressure on the handles. These pliers come with straight tips.
- Circlip pliers come in two varieties: external and internal. The external ones feature a handle that rotates counter-clockwise, opening to reveal the head and allowing the circlip to be pushed out of the way. They are used for mounting circlips on shafts and guide rods.
| 1850 | L mm/inch | FOR HOLE mm  | D  mm |  g |  |  pcs |
|---|---|---|---|---|---|---|
| 16 | 400/ 16" | 3.5~4.0 | 3.0 | 950 | 85~170mm | 1 |
| 20 | 500/ 20" | 4.5~5.5 | 3.5 | 1660 | 165~300mm | 1 |
