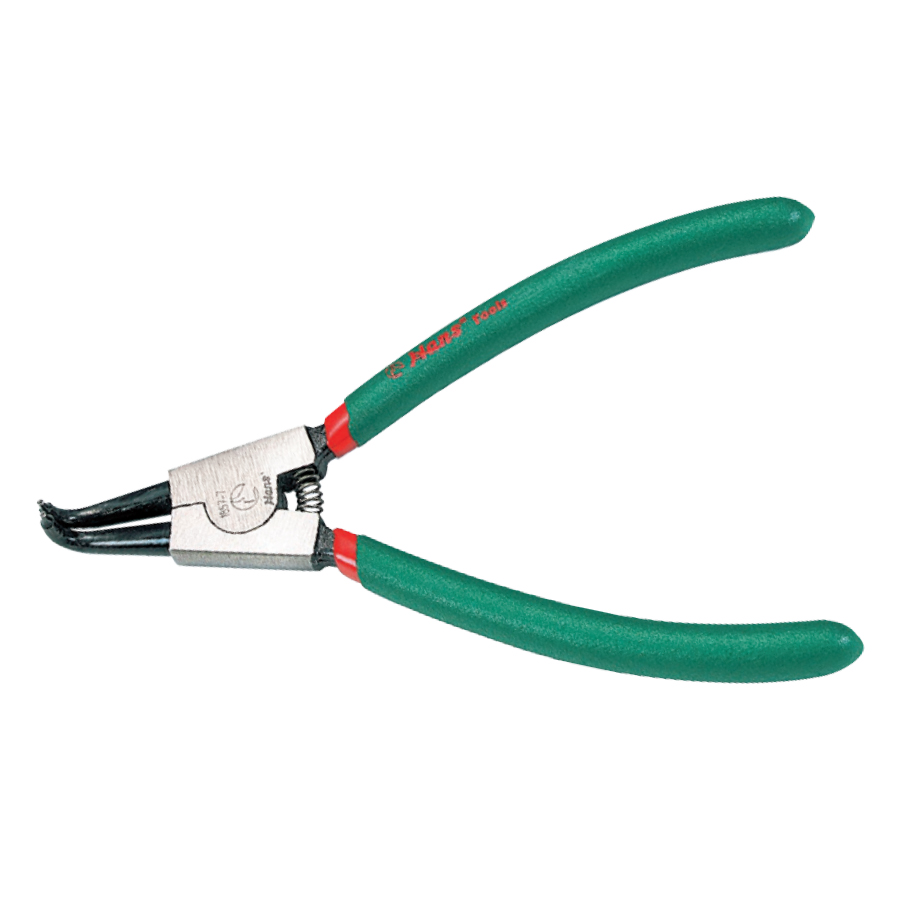

1857- External Circlip Plier- Bent Pattern
1857- External Circlip Plier- Bent Pattern
- Pince pour circlips extérieurs a becs coudes a 90°
- Szczypce do uszczelki zewnętrznych z kątem 90°
- Zange für Externe mit 90°-Winkel
- Alicates para arandelas exteriores de bocas acodado a 90°
- كماشة للغسالات الخارجية مع أفواه بزاوية 90 درجة
- คีมสำหรับแหวนรองภายนอกที่มีปากทำมุม 90°
- 1857-51/-7/-9/-12
- 彎嘴外扣環鉗
- DIN ISO 5254B
- Handle Introduction- (Plier, Torque Wrench and Wrench)
- Pliers and their Uses- (A-E)
- Circlip pliers are special pliers for installing and removing circlips, which are used to keep parts together. An internal circlip is used when parts are pressed onto a shaft. A single or double external circlip is used to hold components together that move relative to one another.
| 1857 | L mm(inch) | T1 mm | L3 mm |  g | D  |  |
|---|---|---|---|---|---|---|
| 51 | 130 | 8.5 | 28 | 110 | 0.9mm | 3~10mm |
| 7 | 170(7") | 9 | 38 | 180 | 1.8mm | 19~60mm |
| 9 | 210(9") | 9 | 50 | 200 | 2.3mm | 40~100mm |
| 12 | 310(12") | 12 | 66 | 500 | 3.0mm | 85~165mm |
