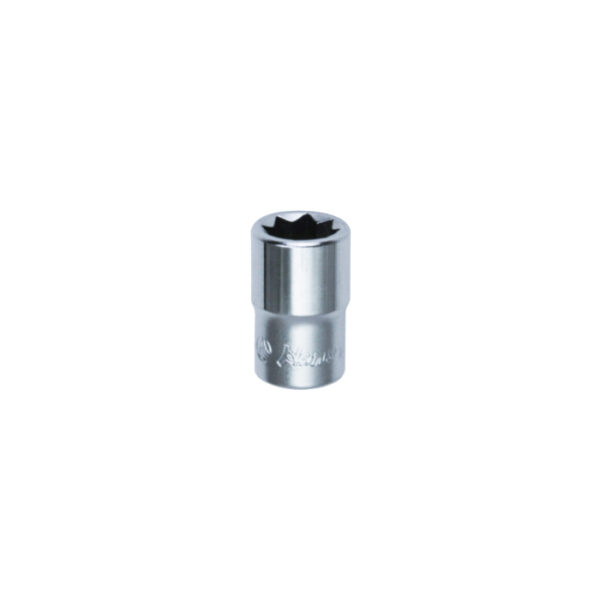

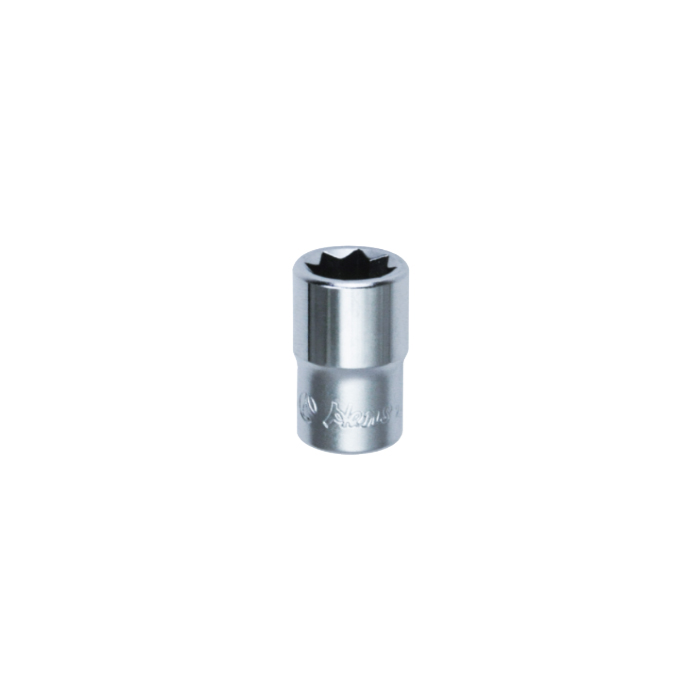

2403M/A-Double Square Socket-1/4″Drive
1/4″ Drive Double Square Socket
- Douilles 8 Pans
- Nasadki 8-punktowe
- 8-Punkt-Steckdosen
- Vasos Double Square Drive
- 8 مقابس
- ซ็อกเก็ต 8 จุด
- DIN 3120- ISO 11174
- DIN 3124- ISO 2725
- ASME B 107.1
- 八角套筒
Feature
What are Double Square(8 point) sockets used for? Double Square sockets are ideal for driving square headed screws, male threaded studs, and lag bolts. With the addition of an 8 point socket to your tool set, you can remove the need of using a shifter, stop rounding off nuts and bolts, and tighten them securely without stripping.
2403M/A DOUBLE SQUARE SOCKET
| 2403M (mm) | 2403A (inch) | D1 (mm) | D2 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|
| 6 | 1/4 | 11 | 11.7 | 24 | 14 | 50 |
| 8 | 5/16 | 14.3 | 13.0 | 24 | 14 | 50 |
| 10 | 3/8 | 17.6 | 16.5 | 24 | 14 | 50 |
Dimension
Profile of DOUBLE SQUARE SOCKET
The 8-point socket makes use on stubborn or damaged fasteners, and also on fasteners made from soft materials. Uses a radius-corner design that shifts contact area and stress away from the fastener corners and distributes contact stresses over a large area of the socket, minimizing slippage. Its internal design minimizes fastener rounding and allows the user to more easily turn worn, rounded, or rusted fasteners.
