8400M/A-Hand Socket (Manual) 6 Point- 1″ Drive
SKU
8400M/A
Categories 手動套筒 Socket, 套筒 棘輪扳手 及套裝Socket / Ratchet / Combo (Socket Wrench Set), 手動套筒 Socket-1"DR.
Tags 1"DR, 6角-接觸點, 手動套筒

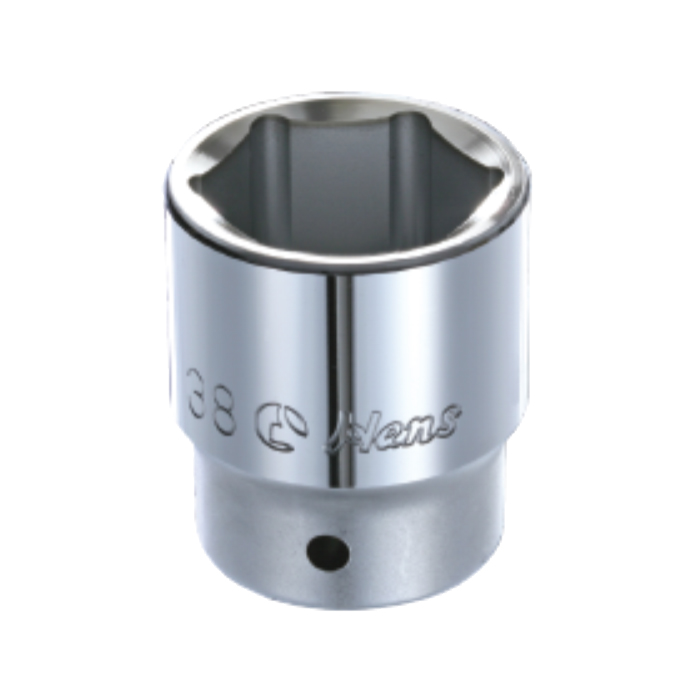

1″ Drive Hand Socket (Manual) 6 Point
- Douilles 6 pans
- Gniazdo sześciokątne
- Sechskant
- Vasos de hexagonal
- مأخذ عرافة
- ซ็อกเก็ตฐานสิบหก
- DIN 3120, ISO 1174
- DIN 3124, ISO 2725
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 六角-十二角

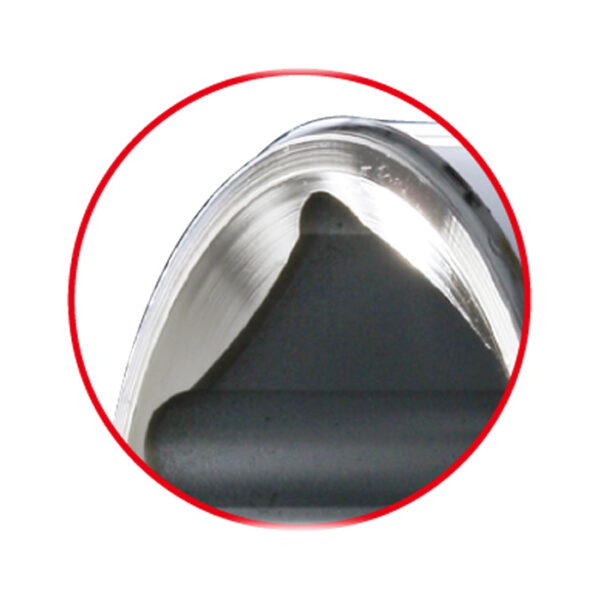

- An-Lock Drive® (Superb Torque)
Feature
- An-Lock Drive® (Superb Torque) is built to do one thing: help you get that job done right. has only one thing on its mind: helping you get the job done with ease, safety, and quality. With its many smart features such as reversing levers, stronger grips, and deep-reaching heads, it can get to those difficult places or those hard-to-reach nuts or bolts with incredible precision. Made from Chrome Vanadium-CrV 6140 alloy steel, it is one of the strongest bits in the industry.
8400M (mm) | 8400A (inch) | D1 (mm) | D2 (mm) | L (mm) | g | pcs |
---|---|---|---|---|---|---|
24 | (15/16) | 38 | 43 | 61 | 340 | 5 |
27 | (1-1/16) | 41 | 43 | 61 | 360 | 5 |
28 | 43 | 43 | 61 | 370 | 5 | |
(1-1/8) | 43 | 43 | 61 | 370 | 5 | |
30 | (1-3/16) | 44 | 45 | 61 | 380 | 5 |
32 | (1-1/4) | 46 | 45 | 61 | 400 | 5 |
33 | (1-5/16) | 47 | 45 | 61 | 410 | 1 |
34 | 48 | 45 | 61 | 420 | 1 | |
35 | (1-3/8) | 48 | 45 | 61 | 420 | 1 |
36 | (1-7/16) | 51 | 45 | 65 | 460 | 1 |
38 | (1-1/2) | 54 | 45 | 65 | 500 | 1 |
40 | (1-9/16) | 55 | 45 | 65 | 520 | 1 |
41 | (1-5/8) | 57 | 45 | 70 | 570 | 1 |
42 | 59 | 50 | 70 | 710 | 1 | |
43 | (1-11/16) | 60 | 50 | 70 | 710 | 1 |
(1-3/4) | 63 | 50 | 70 | 780 | 1 | |
46 | (1-13/16) | 65 | 50 | 76 | 870 | 1 |
48 | (1-7/8) | 67 | 54 | 76 | 950 | 1 |
50 | (2") | 70 | 54 | 80 | 1050 | 1 |
52 | (2-1/16) | 72 | 54 | 80 | 1100 | 1 |
54 | (2-1/8) | 74 | 57 | 80 | 1150 | 1 |
55 | (2-3/16) | 75 | 57 | 80 | 1250 | 1 |
57 | (2-1/4) | 78 | 57 | 80 | 1280 | 1 |
58 | 79 | 57 | 80 | 1300 | 1 | |
59 | (2-5/16) | 80 | 57 | 80 | 1400 | 1 |
60 | (2-3/8) | 82 | 57 | 84 | 1500 | 1 |
(2-7/16) | 84 | 57 | 87 | 1530 | 1 | |
63 | (2-1/2) | 86 | 57 | 87 | 1550 | 1 |
65 | 88 | 57 | 87 | 1600 | 1 | |
67 | (2-5/8) | 90 | 57 | 90 | 1800 | 1 |
70 | (2-3/4) | 94 | 68 | 93 | 2100 | 1 |
71 | 95 | 68 | 93 | 2150 | 1 | |
(2-13/16) | 97 | 68 | 93 | 2350 | 1 | |
(2-15/16) | 100 | 68 | 97 | 2450 | 1 | |
75 | 100 | 68 | 97 | 2500 | 1 | |
77 | (3") | 102 | 68 | 103 | 2600 | 1 |
80 | (3-1/8) | 105 | 68 | 103 | 2800 | 1 |
85 | (3-3/8) | 114 | 86 | 105 | 3700 | 1 |
90 | (3-1/2) | 120 | 86 | 105 | 4100 | 1 |
95 | (3-3/4) | 126 | 86 | 105 | 4600 | 1 |
100 | (3-15/16) | 132 | 86 | 105 | 5000 | 1 |
