86117-Air Impact Wrench (Heavy Duty)- 3/4″ Drive
3/4″ Drive Air Impact Wrench (Heavy Duty)- Composite Cover
- Clé à chocs à air
- Klucz udarowy pneumatyczny
- Druckluft-Schlagschrauber
- Llave de impacto
- تأثير وجع الهواء
- ประแจผลกระทบอากาศ
- 工業級氣動衝擊扳手 超大出力 3/4″方頭
- 雙鎚裝置結構, Twin-Hammer
※ LIGHT WEIGHT
| ITEM NO. | DRIVE | ANVIL inch(mm) | MAX TORQUE FT · LB(Nm) @ 5 SEC | MINI TORQUE FT · LB(Nm) | STDBOLT SIZE inch(mm) | FREE SPEED R.P.M. | MECHANISM |
|---|---|---|---|---|---|---|---|
| 86116 |  | 1.15" (29.12) | 1600( 2170) | 150-1200 (203-1627) | M32 | 5500 | TWIN HAMMER |

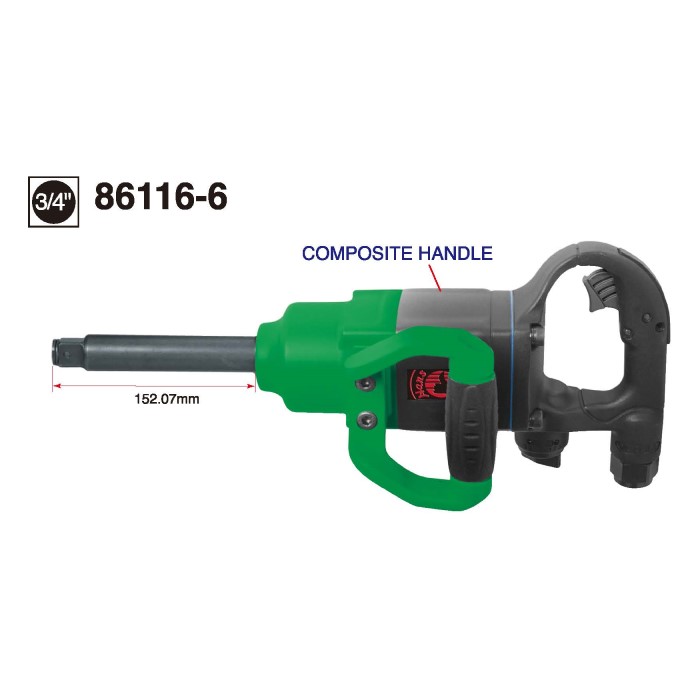

| 86116-6 | | 6" (152.07) | 1600 (2170) | (150-1200) (203-1627) | M32 | 5500 | TWIN HAMMER |

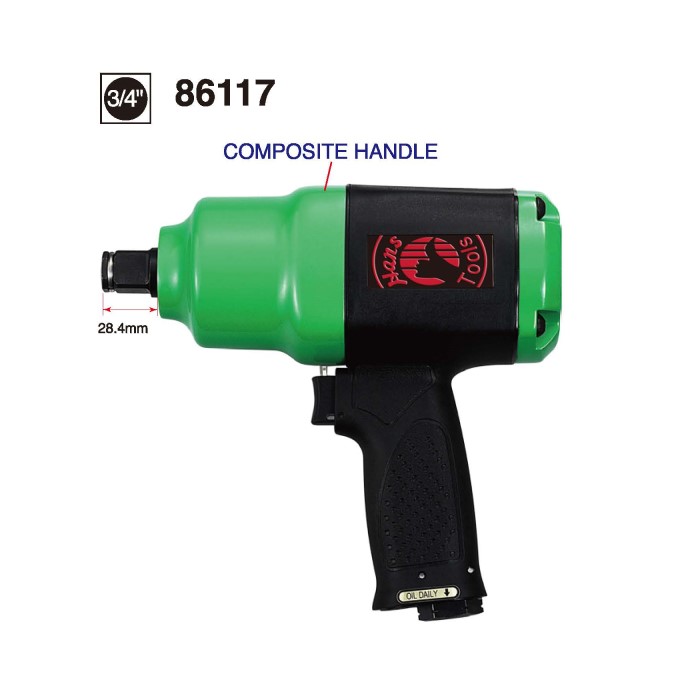

| 86117 | | 1.12" (28.4) | 1300 (1763) | (200-900) (271-1220) | M30 | 6500 | NEW TWIN HAMMER |

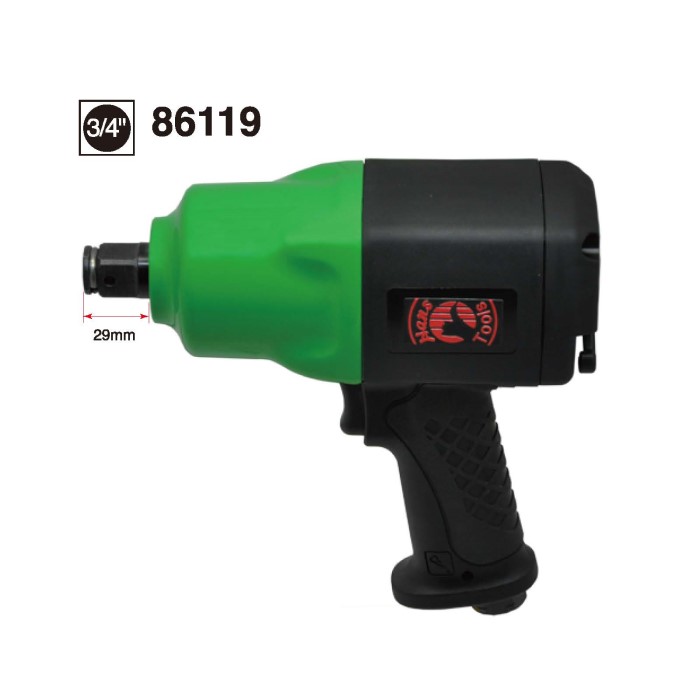

| 86119 | | 1.14" (29) | 1300 (1763) | (300-1000) (407-1356) | M26 | 6000 | NEW TWIN HAMMER |
| EXHAUST | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR(PSI) | AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) |  KGS |  pcs |
|---|---|---|---|---|---|---|---|
| SIDE | 8.5 | 6.2(90) | 1/2 | 3/4 | 12.5"(318) | 5.7 | 4 |
| SIDE | 8.5 | 6.2(90) | 1/2 | 3/4 | 18.3"(465) | 6.4 | 4 |
| HANDLE W/MUFFLER | 6.7 | 6.2(90) | 3/8 | 1/2 | 8.9"(225) | 3.89 | 4 |
| HANDLE W/MUFFLER | 7.3 | 6.2(90) | 3/8 | 1/2 | 8.7"(222) | 4.19 | 4 |
