88112- Air Impact Wrench- 1″ Drive
1″ Drive Air Impact Wrench- Aluminum Cover
- Clé à chocs à air
- Klucz udarowy pneumatyczny
- Druckluft-Schlagschrauber
- Llave de impacto
- تأثير وجع الهواء
- ประแจผลกระทบอากาศ
- 工業級氣動衝擊起子 超大出力 1″方頭
- 雙鎚裝置結構, Twin-Hammer
| ITEM NO. | DRIVE | ANVIL inch(mm) | MAX TORQUE FT · LB(Nm) @ 5 SEC | MINI TORQUE FT · LB(Nm) | STDBOLT SIZE inch(mm) | FREE SPEED R.P.M. | MECHANISM |
|---|---|---|---|---|---|---|---|

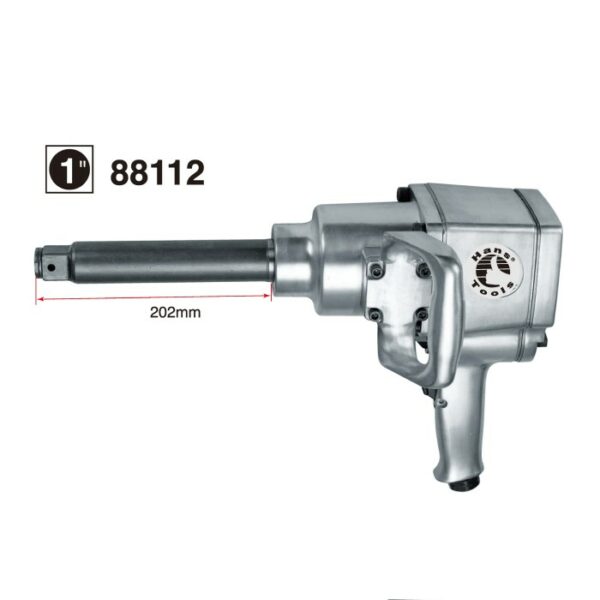

| 88112 |  | 7.95" (202) | 1800 (2441) | 250-1500 (339-2034) | M38 | 4000 | NEW TWIN HAMMER |

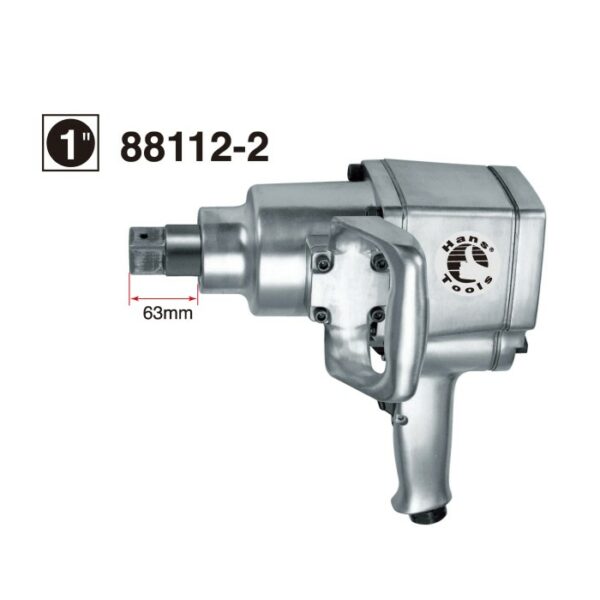

| 88112-2 | | 2.48" (63) | 1800 (2441) | 250-1500 (339-2034) | M38 | 4000 | NEW TWIN HAMMER |
| 88117 | | 1.47" (37.49) | 1800 (2441) | 150-1200 (203-1627) | M38 | 5000 | TWIN HAMMER |
| 88119 | | 1.34" (34) | 1300 (1763) | 400-2000 (542-2712) | M26 | 6000 | NEW TWIN HAMMER |
| 88116 | | 7.38" (187.5) | 2000 (2712) | 150-1200 (203-1627) | M38 | 5000 | TWIN HAMMER |
| 88116-2 | | 1.34" (34) | 2000 (2712) | 150-1200 (203-1627) | M38 | 5000 | TWIN HAMMER |
| EXHAUST | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR(PSI) | AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) |  KGS |  pcs |
|---|---|---|---|---|---|---|---|
| FRONT | 11 | 6.2(90) | 1/2 | 3/4 | 17.6"(446) | 11.14 | 1 |
| FRONT | 11 | 6.2(90) | 1/2 | 3/4 | 11.9"(303) | 9.84 | 1 |
| HANDLE | 9 | 6.2(90) | 1/2 | 3/4 | 10.8"(275) | 7.1 | 2 |
| HANDLE W/MUFFLER | 7.3 | 6.2(90) | 3/8 | 1/2 | 8.9"(227) | 4.24 | 4 |
| SIDE | 9 | 6.2(90) | 1/2 | 3/4 | 19.2"(487) | 8.1 | 2 |
| SIDE | 9 | 6.2(90) | 1/2 | 3/4 | 13.7"(347) | 7.4 | 2 |
