Impact Universal Joint- (6 Point)
Categories 套筒 棘輪扳手 及套裝Socket / Ratchet / Combo (Socket Wrench Set), 氣動套筒 Impact Socket, 配件 (套筒)Accessories, 配件 (套筒)Accessories-1/4"DR., 配件(套筒)Accessories-1"DR., 配件(套筒)Accessories-1/2"DR., 配件(套筒)Accessories-3/4"DR., 配件(套筒)Accessories-3/8"DR.
Tags 1"DR, 1/2"DR, 1/4"DR, 3/4"DR, 3/8"DR, 6角-接觸點, 氣動萬向套筒, 配件類
Impact Universal Joint- (6 Point)
- Impact Universal Joint
- Cardan universel impact
- Amortyzator uniwersalny przegub
- Schock-Universalgelenk
- Cardan de impacto
- صدمة مشتركة عالمية
- โช๊คข้อต่อสากล
- 氣動衝擊萬向套筒(六角)
- DIN 3121- ISO1174
- 3/8″ 83201B ,
- 1/2″ 84201B
- Made by Chromium-molybdenum alloy steel (chrome. moly)
is an alloy used for high pressure and temperature use. It is used in oil and gas, energy, construction and the automotive industries because of its corrosion resistance and high-temperature and tensile strength.
ITEM NO. | RETAINER | L mm | ![]() g | ![]() pcs |
---|---|---|---|---|
82202B | Ball | 43 | 40 | 10 |
83200 | Pin | 60 | 110 | 10 |

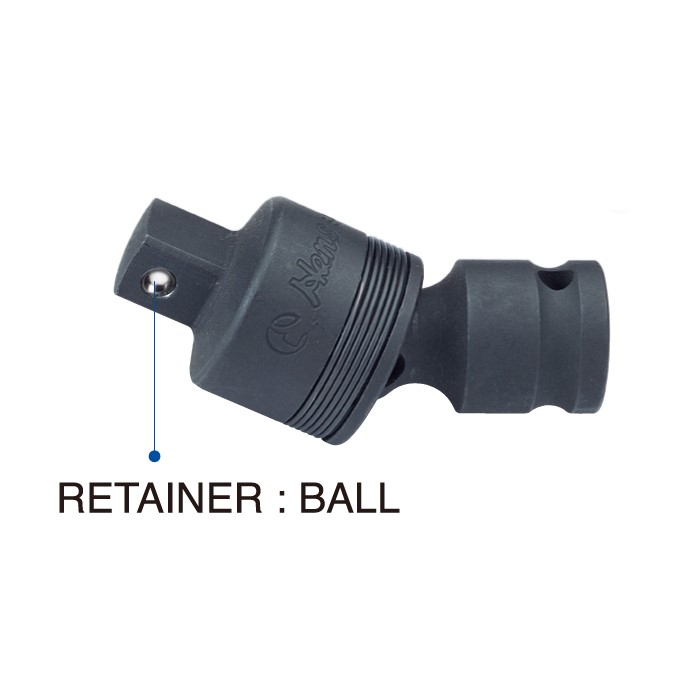

83200B | Ball | 60 | 110 | 10 |

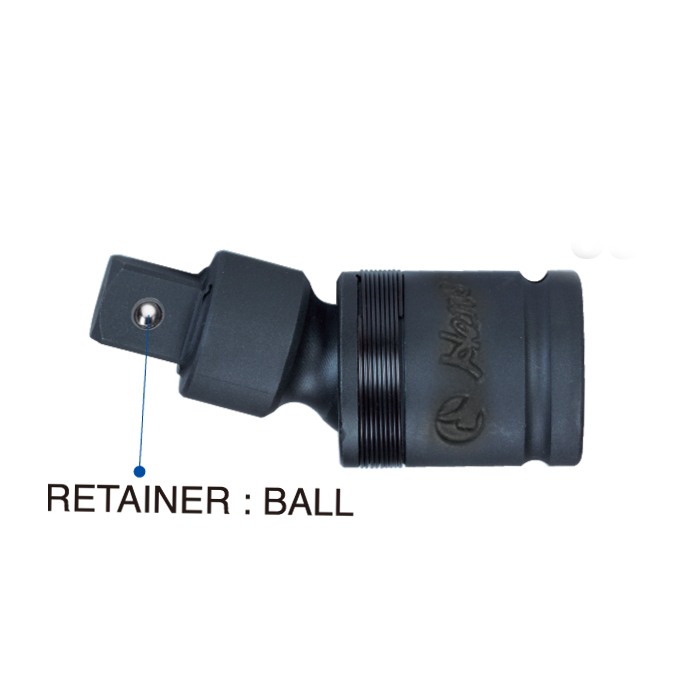

83201B | Ball | 60 | 110 | 10 |
83202B | Ball | 58 | 90 | 10 |
84200 | Pin | 60 | 110 | 10 |
84200B | Ball | 60 | 110 | 10 |
84201 | Pin | 60 | 150 | 10 |

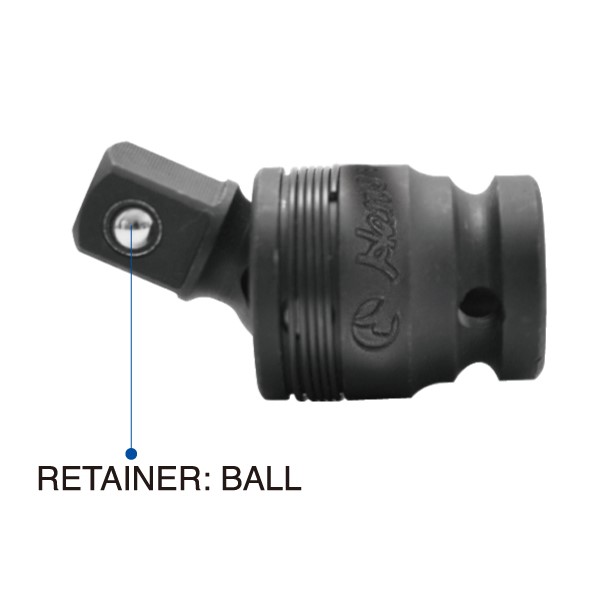

84201B | Ball | 60 | 150 | 10 |
84202B | Ball | 72 | 180 | 10 |
86200 | Pin | 110 | 680 | 1 |
86200B | Ball | 110 | 680 | 1 |
86201 | Pin | 95 | 570 | 1 |
86201B | Ball | 95 | 570 | 1 |
88200 | Pin | 130 | 1150 | 1 |
88200B | Ball | 130 | 1150 | 1 |
88201 | Pin | 117 | 1000 | 1 |
88201B | Ball | 117 | 1000 | 1 |
※ INTERCHANGEABLE PIN STYLE W./ A SPARE PIN F.O.C
