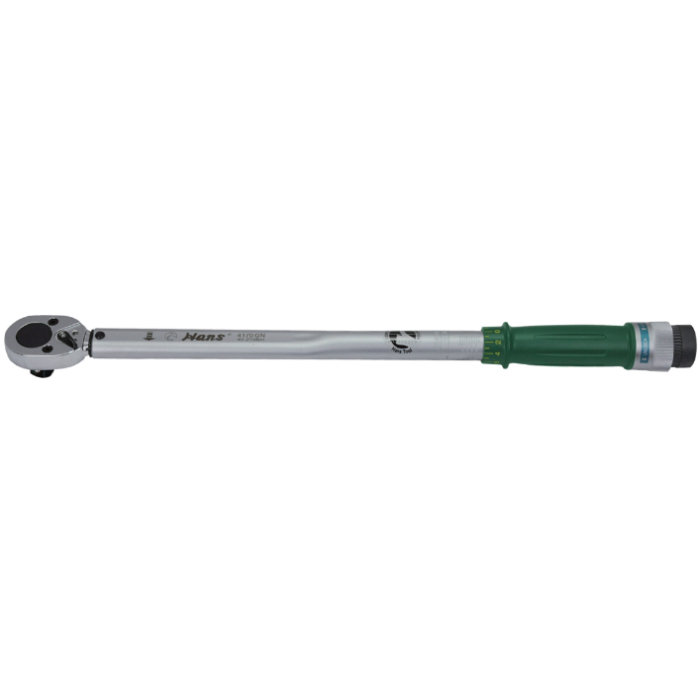

Micro Torque Wrench (Lock-up Setting)- 1/4", 3/8", 1/2", 3/4"

Lock Up torque wrench

Micro Torque Wrench (Lock-up Setting)- 1/4″, 3/8″, 1/2″, 3/4″

Categories 扭力扳手和數位扭力扳手 Torque Wrench/ Digital Torque Wrench, 扭力扳手 Torque Wrench Tags 1/2"DR, 1/4"DR, 3/4"DR, 3/8"DR, 微型扭力扳手

Micro Torque Wrench (Lock-up Setting)- 1/4″, 3/8″, 1/2″, 3/4″

Adjustable torque model for clockwise tightening.
- The model applied on 1/4″, 3/8″ 1/2″, 3/4″ Drive, apply for N.m and ft lbs (Newton-metre, foot-pound)
- Clés dynamométrique
- Klucz dynamometryczny
- Drehmomentschlüssel
- Llaves dinamométrica
- مفتاح العزم
- ประแจวัดแรงบิด
- 扭力扳手
- 2170GN/ 3170GN/ 3171GN/ 4170GN/ 4171GN/ 6170GN/ 2170GI/ 3170GI/ 3171GF/ 4170GF/ 4171GF/ 6170GF

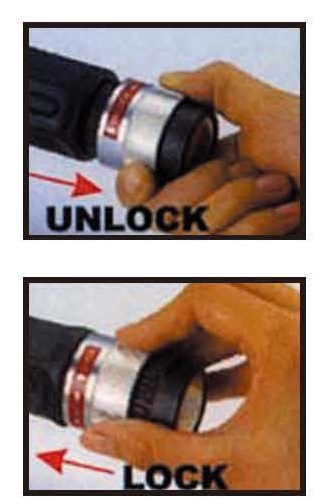

- Sensible and audible alarm on reaching preset torque value
- Plastic Green Handle
- DIN EN ISO 6789
- DIN 3120 – ISO 1174

A torque wrench is an essential tool for ensuring that bolts are tightened to the correct specification. They are made from chrome vanadium steel for strength and durability, and have a ratchet head that allows them to be used for clockwise or anti-clockwise torque. The handle is knurled for a good grip, and when the required torque setting is reached, the wrench produces an audible click and a slight release of tension.

DRIVE	ITEM NO.	CAPACITY N · m	ITEM NO.	CAPACITY FT-LB (INCH-LB)	L mm / inch	g
1/4"	2170GN	6-30	2170GI	40-250 INCH · LB	290 / 13-3/4"	900
3/8"	3170GN	6-30	3170GI	40-250 INCH · LB	295 / 13-3/4"	900
3/8"	3171GN	20-110	3171GF	15-80 FT · LB	380 / 15"	1180
1/2"	4170GN	40-210	4170GF	30-150 FT · LB	535 / 21"	2100
1/2"	4171GN	70-350	4171GF	50-250 FT · LB	650 / 25-1/2"	3110
3/4"	6170GN	100-500	6170GF	50-300 FT · LB	865 / 34"	4730
					BLOW CASE FOR EACH
