Torque Multiplier 4500N.m- Industrial Premium
Torque Multiplier- Industrial Premium 4500Newton-Metre
- Multiplicateur de dynamometrique
- Mnożnik momentu obrotowego
- Drehmomentmultiplikator
- Multiplicando dinamométrica
- مضاعف عزم الدوران
- ตัวคูณแรงบิด
- 倍力器
Torque Multiplier
Make work easier by using leverage which multiplies the Torque.
There are three ways simple machines make work easier:
- by increasing the distance through which force is applied,
- by changing the direction of applied force,
- by multiplying force of speed of the energy applied.
| ITEM NO. | Female(母) (HORSE) | Male(公) (SQUARE) | GEAR RATIO | TORQUE RATIO |
|---|---|---|---|---|

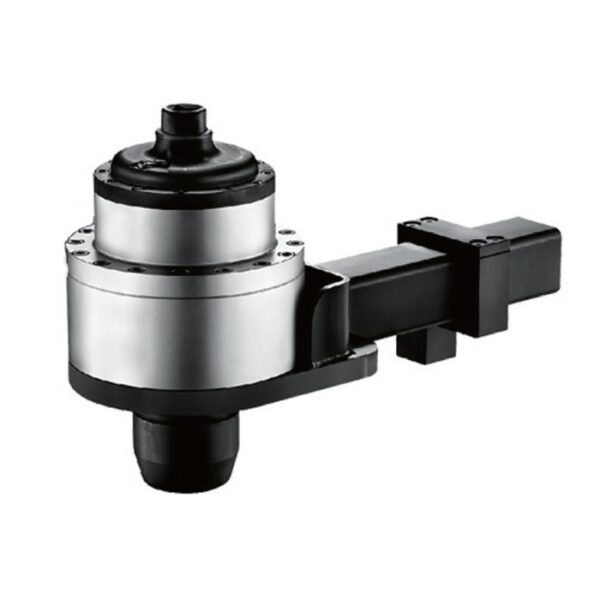

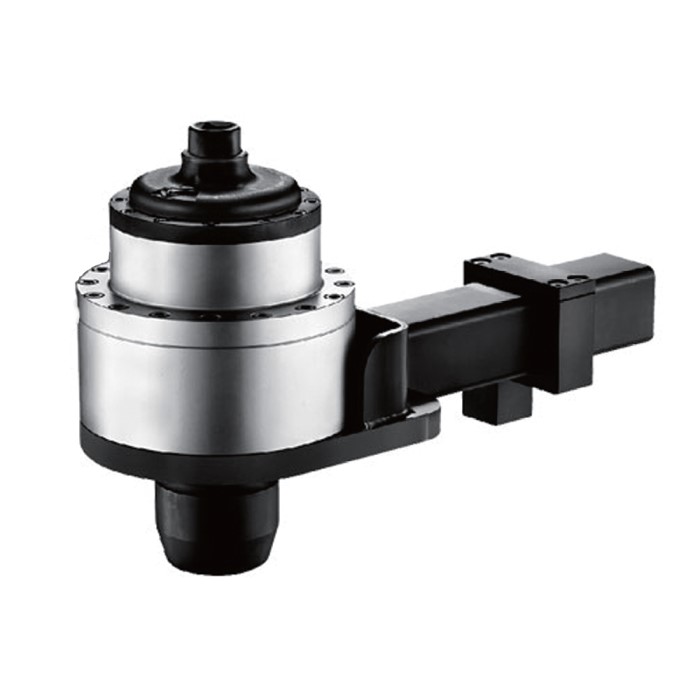

| 6294-4 | 1/2" DR. | 3/4" DR. | 1 : 4 | 1 : 3.5 |
| 6294-43 | 1/2" DR. | 3/4" DR. | 1 : 4.3 | 1 : 3.8 |

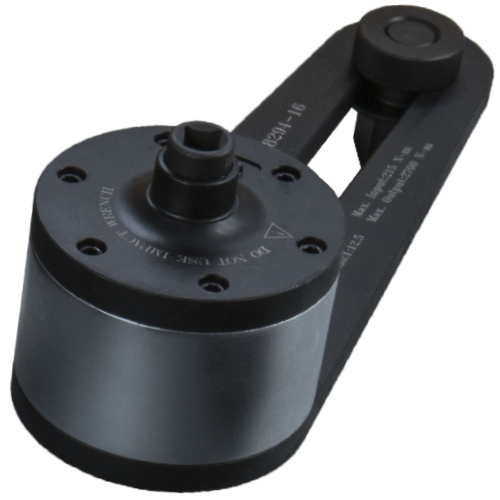

| 8294-16 | 1/2" DR. | 1" DR. | 1 : 16 | 1 : 12.5 |

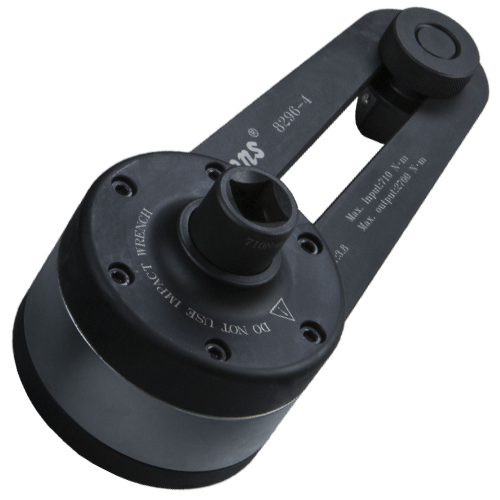

| 8296-4 | 3/4" DR. | 1" DR. | 1 : 4 | 1 : 3.8 |
| 8296-5 | 3/4" DR. | 1-1/2" DR. | 1 : 5.5 | 1 : 4.8 |

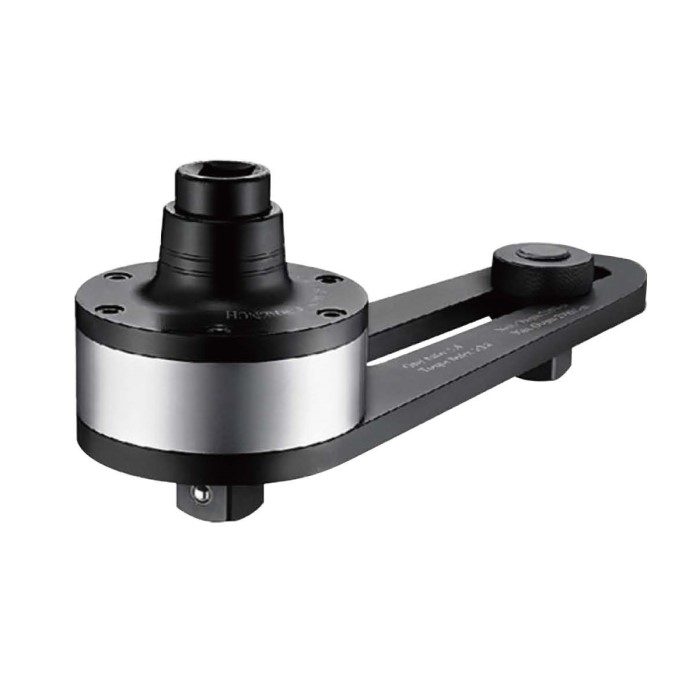

| 9296-5 | 3/4" DR. | 1-1/2" DR. | 1 : 5.5 | 1 : 4.8 |
| 9294-22 | 1/2" DR. | 1-1/2" DR. | 1 : 22 | 1 : 16.8 |

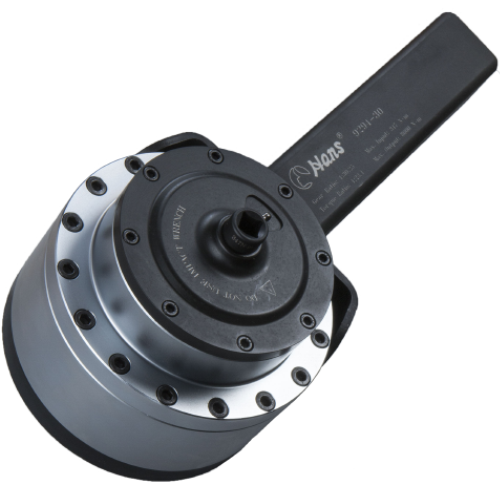

| 9294-30 | 1/2" DR. | 1-1/2" DR. | 1 : 30.25 | 1 : 23.1 |

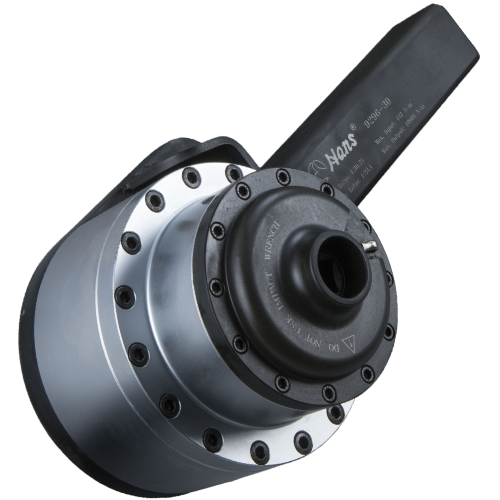

| 9296-30 | 3/4" DR. | 1-1/2" DR. | 1 : 30.25 | 1 : 23.1 |
| 9294-22U | 1/2" DR. | 1-1/2" DR. | 1 : 22 | 1 : 16.8 |
| W mm | H mm | L mm | INPUT TORQUE N · m | OUTPUT TORQUE N · m |  g |
|---|---|---|---|---|---|
| 80 | 107 | 272.5 | MAX : 285 | MAX : 1000 | 4300  |
| 92 | 119.5 | 278.5 | MAX : 395 | MAX : 1500 | 5900 |
| 108 | 146 | 329 | MAX : 215 | MAX : 2700 | 8000 |
| 113 | 134 | 356.5 | MAX : 710 | MAX : 2700 | 8200 |
| 137 | 168 | 377.5 | MAX : 938 | MAX : 4500 | 11500 |
| 137 | 168 | 377.5 | MAX : 938 | MAX : 4500 | 11500 |
| 153 | 206 | 457.5 | MAX : 357 | MAX : 6000 | 20000 |
| 185 | 213.5 | 485 | MAX : 347 | MAX : 8000 | 30000 |
| 185 | 259.5 | 485 | MAX : 433 | MAX : 10000 | 32500 |
| 137 | 170.2 | 377.5 | MAX : 275 | MAX : 4500 | 13000 |
