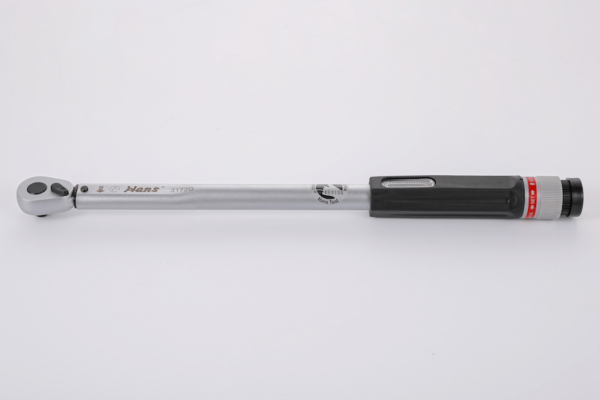

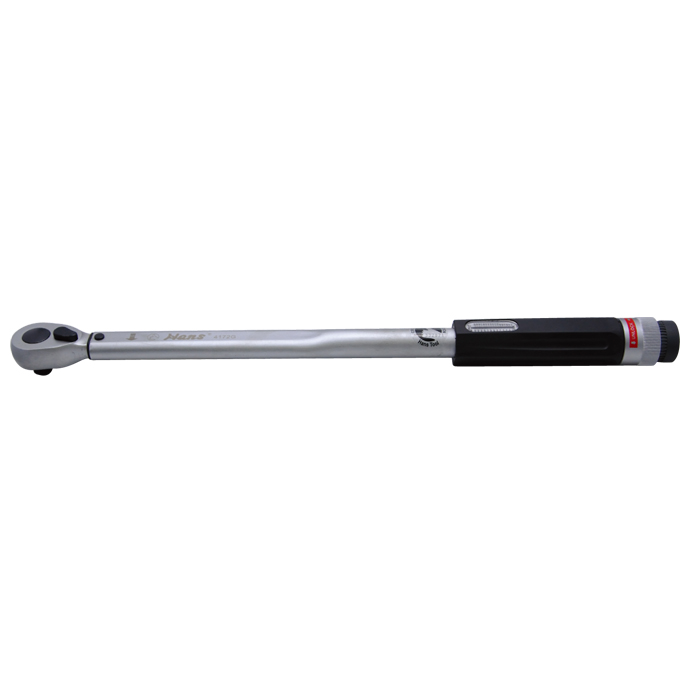

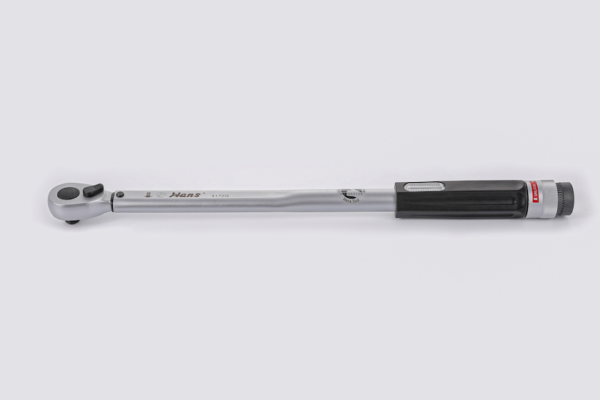

Torque Wrench (Scale Window)- 1/4", 3/8", 1/2" Drive

Torque Wrench (Scale Window)

  • Clés dynamométrique
  • Klucz dynamometryczny
  • Drehmomentschlüssel
  • Llaves dinamométrica
  • مفتاح العزم
  • ประแจวัดแรงบิด
  • 扭力扳手
  • 2172G/ 2173G/ 3172G/ 3173G/ 4172G/ 4173G
  • DIN EN ISO 6789
  • DIN 3120 – ISO 1174
Lock Up torque wrench
Torque Wrench (Scale Window)- 1/4", 3/8", 1/2" Drive

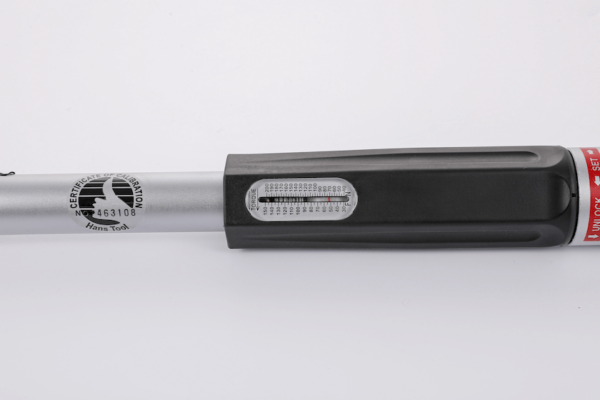

  • Accuracy: +/-3% of reading. Micrometer Scale for simple and error free setting. (On dual scale wrenches, the micrometer increment applies to the N·m scale.) Quick and Light Adjustment: scale can quickly be achieved and with minimal effort in approximately ten complete turns (exact number varies by model).
  • The handle is made of two materials: a base material for strength and a soft grip for comfort and slip resistance. The materials resist chemicals and are durable in the face of rigorous use.
Clicker torque wrench
DRIVEITEM NO.CAPACITY
N · m
CAPACITY
FT · LB
INCH · LB
L
mm/inch

g
1/4"2172G6-3040-250
INCH · LB
310/ 12"1530
1/4"2173G3-1530-150
INCH · LB
193/ 7-19/32"1530
3/8"3172G20-10015-75
FT · LB
440/ 17-3/8"1530
3/8"3173G10-609-45
FT · LB
390/ 15-23/64"1530
1/2"4172G40-20030-150
FT · LB
530/ 21"2000
1/2"4173G60-32060-230
FT · LB
600/ 24"2000
