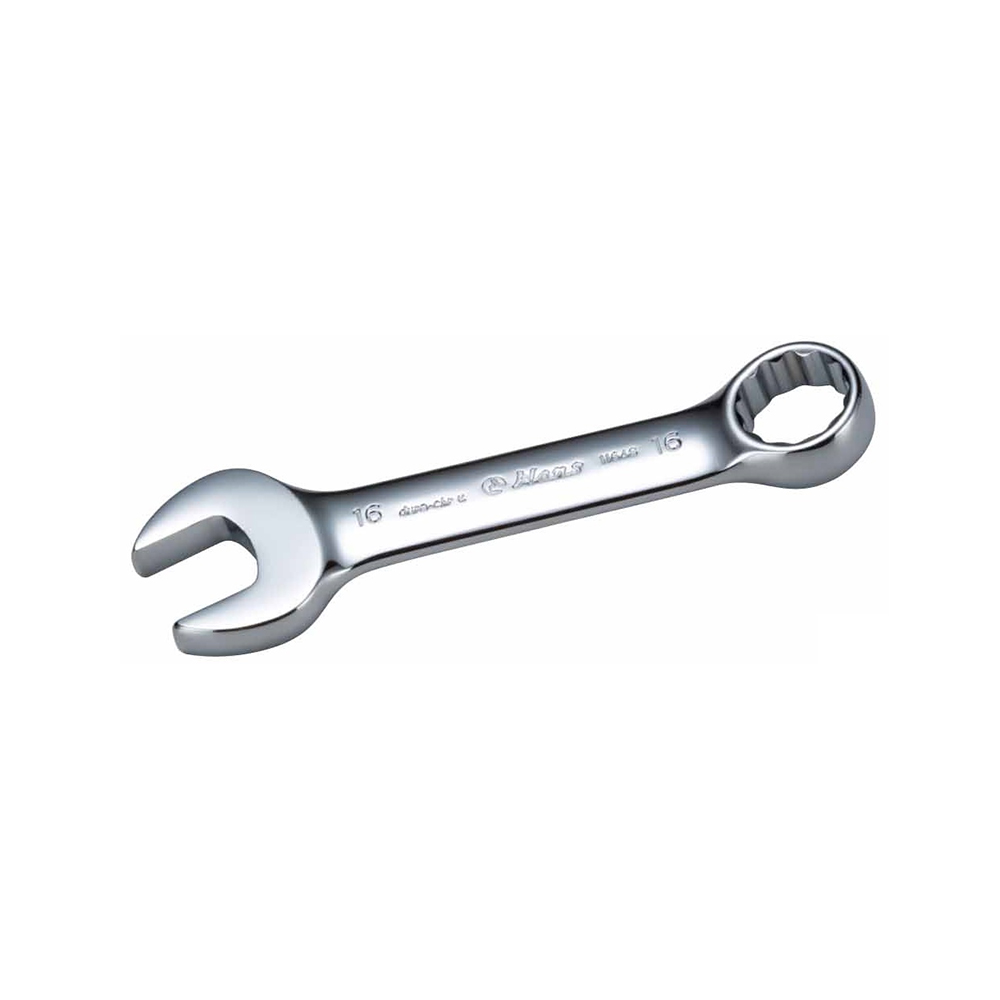

1164S/SA- Combination Wrench- Stubby
1164S/SA- Combination Wrench- Stubby
- Combination Wrench- Stubby
- Clés mixtes- serie courte drole
- Klucz płasko-oczkowy z krótką rękojeścią
- Kombischlüssel mit kurzem Griff
- Llaves combinada de cortas
- وجع مزيج مقبض قصير
- ประแจรวมด้ามสั้น
- 短柄複合扳手
- DIN 3113- ISO 3318
- ASME B107.9M
- An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.
| 1164S (mm) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|---|
| 8 | 17.1 | 12.8 | 6.5 | 5 | 91 | 25 | 12 |
| 9 | 21.4 | 15 | 7.5 | 6.2 | 97 | 32 | 12 |
| 10 | 21.4 | 15 | 7.5 | 6.2 | 97 | 32 | 12 |
| 11 | 23.7 | 17.3 | 8 | 5.9 | 100 | 45 | 12 |
| 12 | 25.9 | 18.4 | 8.8 | 6 | 105 | 47 | 12 |
| 13 | 26.8 | 19.7 | 8.7 | 6.3 | 108 | 55 | 12 |
| 14 | 29.8 | 21.7 | 9.3 | 6.7 | 115 | 67 | 12 |
| 15 | 31.6 | 22.8 | 9.8 | 7.1 | 118 | 76 | 12 |
| 16 | 33.8 | 24.2 | 10.7 | 7.5 | 122 | 88 | 12 |
| 17 | 36.2 | 25.4 | 10.9 | 7.8 | 130 | 108 | 12 |
| 18 | 37.8 | 26.2 | 11.5 | 8.2 | 133 | 115 | 12 |
| 19 | 40 | 27.8 | 12.1 | 8.5 | 138 | 134 | 12 |
| 20 | 40 | 27.8 | 12.1 | 8.5 | 138 | 134 | 12 |
| 21 | 45.3 | 33.2 | 14 | 9.6 | 156 | 198 | 12 |
| 22 | 45.3 | 33.2 | 14 | 9.6 | 156 | 198 | 12 |
| 1164SA (inch) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) | g | pcs |
|---|---|---|---|---|---|---|---|
| (5/16) | 17.1 | 12.8 | 6.5 | 5 | 91 | 25 | 12 |
| (3/8) | 21.4 | 15 | 7.5 | 6.2 | 97 | 32 | 12 |
| (7/16) | 23.7 | 17.3 | 8 | 5.9 | 100 | 45 | 12 |
| (1/2) | 26.8 | 19.7 | 8.7 | 6.3 | 108 | 55 | 12 |
| (9/16) | 29.8 | 21.7 | 9.3 | 6.7 | 115 | 67 | 12 |
| (5/8) | 33.8 | 24.2 | 10.7 | 7.5 | 122 | 88 | 12 |
| (11/16) | 36.2 | 25.4 | 10.9 | 7.8 | 130 | 108 | 12 |
| (3/4) | 40 | 27.8 | 12.1 | 8.5 | 138 | 134 | 12 |
| (13/16) | 45.3 | 33.2 | 14 | 9.6 | 156 | 198 | 12 |
| (7/8) | 45.3 | 33.2 | 14 | 9.6 | 156 | 198 | 12 |
