1170- Gate-Open Adjustable Wrench
SKU
1170
Categories 扳手 六角扳手 L型扳手 Wrench / L-Key Wrench, 扳手類 單品 Wrench- Individual, 扳手類 Wrench
Tag 可調整型扳手

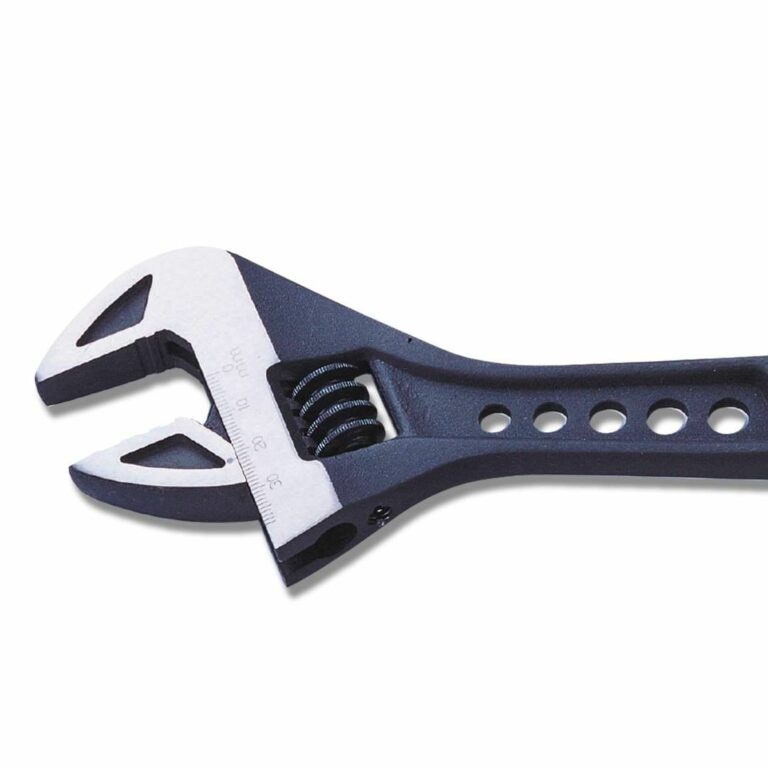

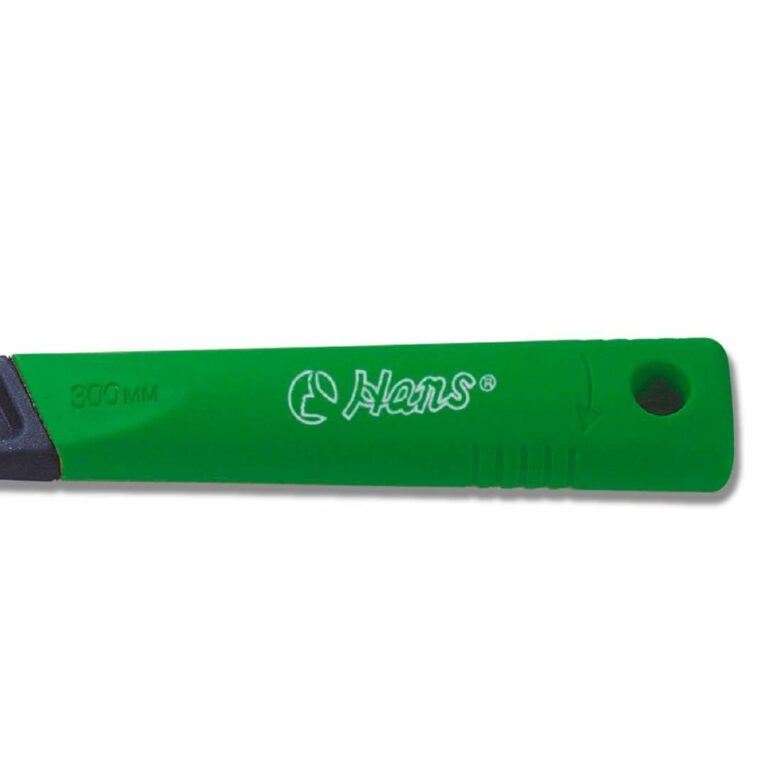

1170- Gate-Open Adjustable Wrench- Spanner
- Gate-Open, Adjustable Wrench/ Adjustable Spanner
- Clés à molette à ouverture graduée
- Klucz nastawny ze stopniowanym otworem
- Rollgabelschlüssel mit abgestufter Öffnung
- Llaves inglesas de “Gate Open”
- مفتاح ربط قابل للتعديل مع فتحة متدرجة
- ประแจเลื่อนพร้อมช่องเปิดแบบขั้นบันได
- 1170-6/-8/-10/-12
- 開口功能大1/4倍的新型活動調整扳手
- DIN 3117- ISO 6787
- On Display / Packing Details from the factory of HansTools
- adjustable spanner is a type of wrench that allows for multiple sizes of fastener heads. It features an adjustable jaw, unlike a conventional fixed spanner, which is used only to turn one size of fastener head. Some adjustable spanners are screw-adjusted, while others use levers. The first adjustable spanners were wedge-adjusted.

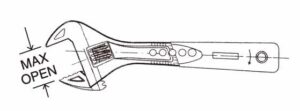

ITEM NO. | LENGTH (inch) | LENGTH (mm) | MAX. GATE OPEN | MAX.NUT APPLIED | pcs |
---|---|---|---|---|---|
1170-6 | 6" | 150 | 24mm | 9/16,M14 | 12 |
1170-8 | 8" | 200 | 28.6mm | 5/8,M18 | 12 |
1170-10 | 10" | 250 | 32.8mm | 3/4,M20 | 12 |
1170-12 | 12" | 300 | 38mm | 1",M24 | 12 |
the picture is only for reference, please make the object as the standard.
