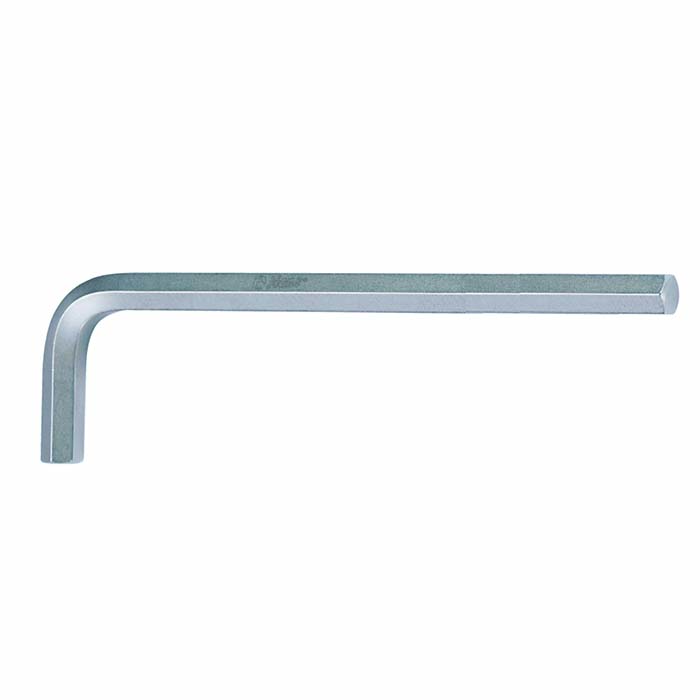

1763M/A- Hex Key Wrench

SKU 1763M/A Categories Wrench / L-Key Wrench, L-Key Wrench, L-Key Wrench- Individual Tag 六角扳手

Hex-Key is called Allen key because it is a hexagonal set screw and wrench for fastening them. It gets its name from the Allen Manufacturing Company, which created hexagonal set screws and wrenches.
What is the difference between Torx and Star Bits? The term Torx stands for the trademark name, while the term “star” describes the tool generically. The two can be used interchangeably, since the tools are identical. The Star Plus design was introduced to make a better Torx Bit, and Torx Plus screws cannot be used with the old Star Bits. The classic Star Bit can be used on the newer design, but it will be loose.

SIZE mm	SIZE inch	ARM (L1)	ARM (L2)	g
1.3		12	72	0.9
1.5	1/16	14	77	1.4
2	5/64	16	83	2.5
2.5	3/32	18	90	4.3
	7/64	19	94	6
3	1/8	20	96	6.8
3.5	9/64	22	102	10
4	5/32	24	105	13.5
4.5		25	112	19
5	3/16	26	115	23
5.5	7/32	28	124	30
6	1/4	30	133	38
7	9/32	33	137	57
8	5/16	36	154	79
9		38	156	114
10	3/8	40	170	138
12	1/2	45	206	251
14	9/16	54	230	385
17	5/8	60	250	623
19	3/4	70	280	876
