2302M/A- 1/4″ Drive Deep Hand Socket (Manual) 12 Point
SKU
2302M/A
Categories 套筒 棘輪扳手 及套裝Socket / Ratchet / Combo (Socket Wrench Set), 手動套筒 Socket, 手動套筒 Socket-1/4"DR.
Tags 1/4"DR, 12角-接觸點, 手動套筒

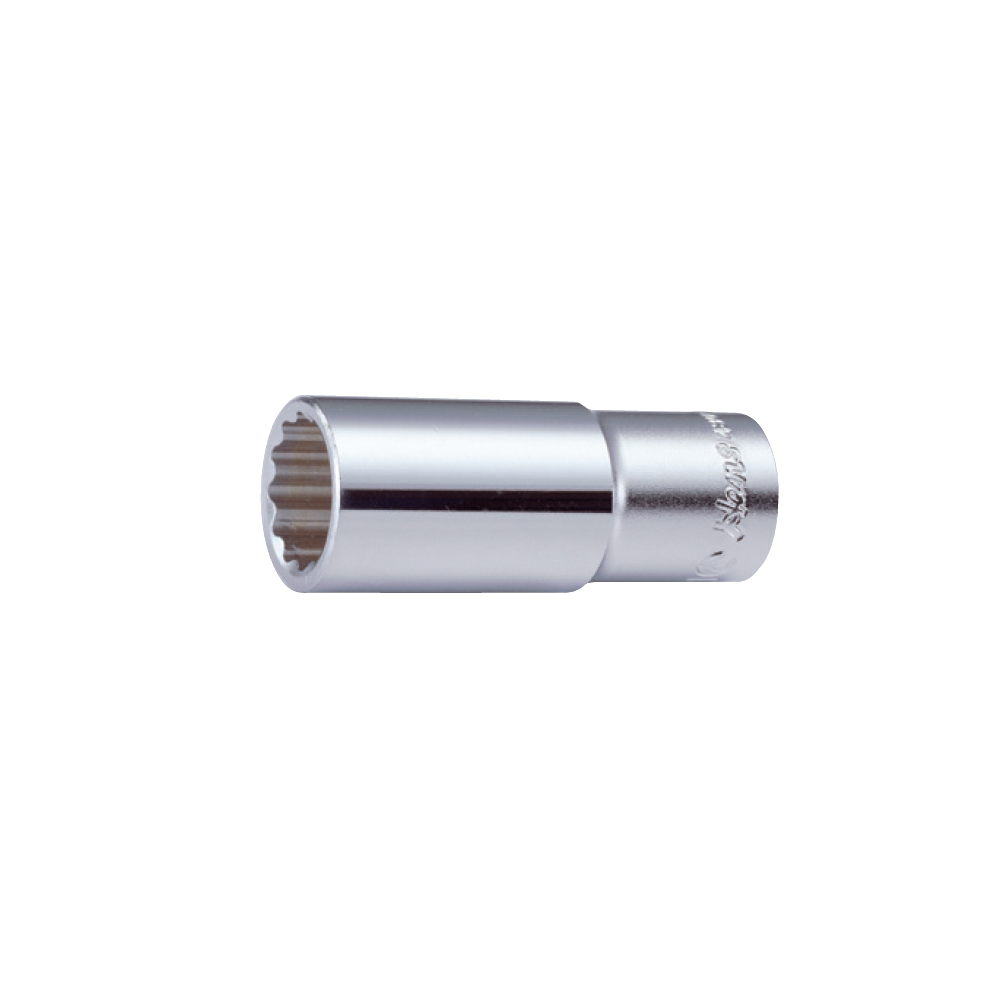

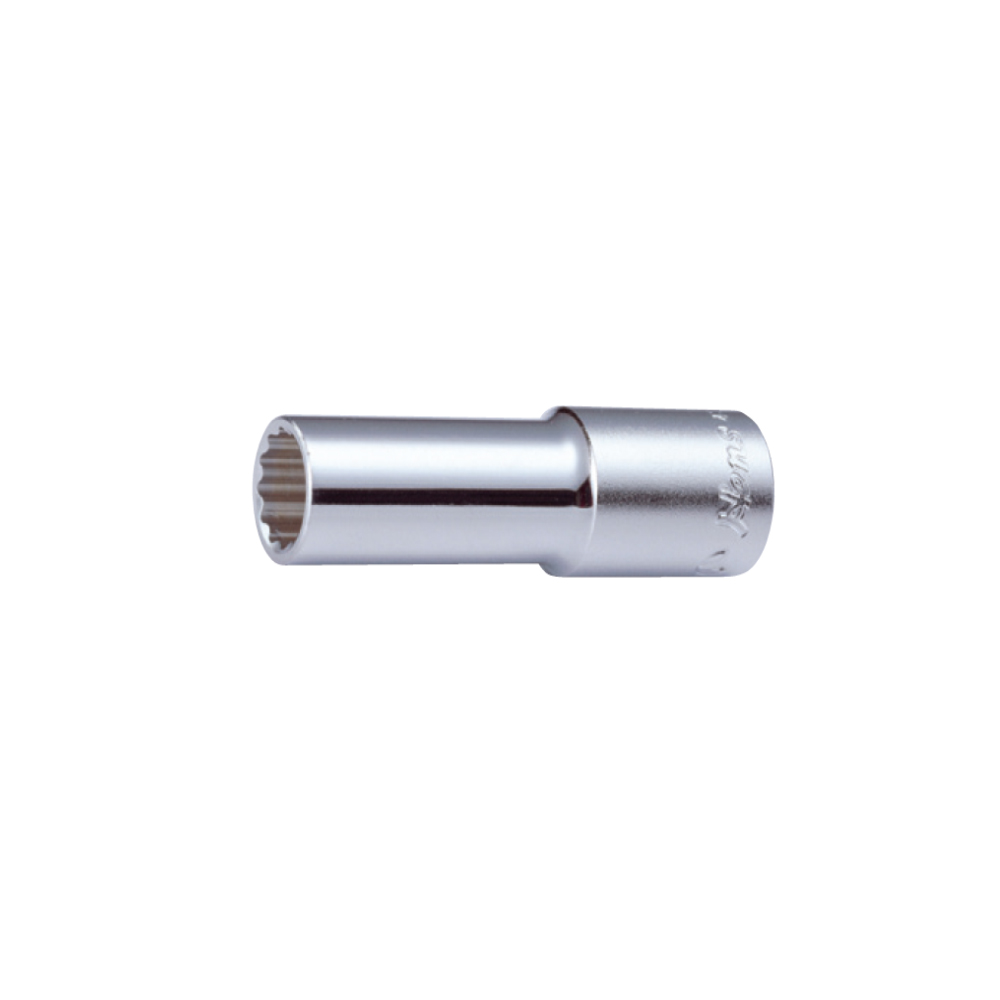

2302M/A- 1/4″ Drive Deep Hand Socket (Manual) 12 Point
- 1/4″ Dr. DEEP HAND SOCKET (MANUAL) 12 POINT
- Douilles 12 pans
- 12 kątowy długi rękaw
- 12-Winkel-Langarm
- Manga larga de 12 ángulos
- 12 زاوية طويلة الأكمام
- แขนยาว 12 มุม
- An-Lock Drive
- DIN 3120- ISO 1174
- DIN 3124- ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動長套筒 公制/英制 -十二角
- An-Lock Drive® (Superb Torque)
Feature
- An-Lock Drive® (Superb Torque) is built to do one thing: help you get that job done right. has only one thing on its mind: helping you get the job done with ease, safety, and quality. With its many smart features such as reversing levers, stronger grips, and deep-reaching heads, it can get to those difficult places or those hard-to-reach nuts or bolts with incredible precision. Made from Chrome Vanadium-CrV 6140 alloy steel, it is one of the strongest bits in the industry.

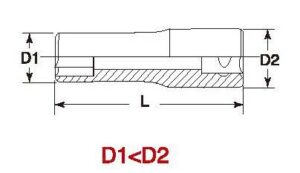

2302M (mm) | 2302A (inch) | D1 mm | D2 mm | L mm | g | pcs |
---|---|---|---|---|---|---|
4.0 | 6.8 | 11.8 | 50 | 19 | 20 | |
5/32 | 7.0 | 11.8 | 50 | 20 | 20 | |
4.5 | 7.4 | 11.8 | 50 | 19 | 20 | |
3/16 | 7.9 | 11.8 | 50 | 20 | 20 | |
5 | 8.0 | 11.8 | 50 | 19 | 20 | |
5.5 | 8.7 | 11.8 | 50 | 19 | 20 | |
7/32 | 8.9 | 11.8 | 50 | 20 | 20 | |
6 | 9.2 | 11.8 | 50 | 22 | 20 | |
1/4 | 10.0 | 11.8 | 50 | 20 | 20 | |
7 | 10.8 | 11.8 | 50 | 23 | 20 | |
9/32 | 11.0 | 11.8 | 50 | 23 | 20 | |
8 | 5/16 | 11.4 | 12.0 | 50 | 23 | 20 |
9 | 11/32 | 13.0 | 12.2 | 50 | 26 | 20 |
10 | 3/8 | 14.5 | 13.0 | 50 | 30 | 20 |
11 | 7/16 | 16.0 | 14.2 | 50 | 35 | 20 |
15/32 | 16.8 | 15.5 | 50 | 41 | 20 | |
12 | 17.0 | 15.5 | 50 | 43 | 20 | |
13 | 1/2 | 18.0 | 16.5 | 50 | 45 | 20 |
14 | 9/16 | 19.5 | 17.5 | 50 | 58 | 20 |
15 | 20.9 | 20.9 | 50 | 58 | 20 |
