2402M/A- 1/4″Drive Hand Socket (Manual) /12 Point
SKU
2402M/A
Categories 套筒 棘輪扳手 及套裝Socket / Ratchet / Combo (Socket Wrench Set), 手動套筒 Socket, 手動套筒 Socket-1/4"DR.
Tags 1/4"DR, 12角-接觸點, 手動套筒
2402M/A- 1/4″Drive Hand Socket (Manual) /12 Point
- 2402M/A 12 POINT HAND SOCKET- MANUAL
- vasos de surface drive
- douilles 12 pans surface drive
- unidade de superfície douilles 12 panelas
- douilles 12 pfannen oberflächenantrieb
- douilles 12 casseroles surface drive
- ไดรฟ์พื้นผิว douilles 12 กระทะ
- DIN 3120, ISO 1174
- DIN3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- M- Stands for Metric size/ A Stands for Imperial
- 手動套筒 公制/英制 六角-十二角
- An-Lock Drive® (Superb Torque)
Feature
- An-Lock Drive® (Superb Torque) is built to do one thing: help you get that job done right. has only one thing on its mind: helping you get the job done with ease, safety, and quality. With its many smart features such as reversing levers, stronger grips, and deep-reaching heads, it can get to those difficult places or those hard-to-reach nuts or bolts with incredible precision. Made from Chrome Vanadium-CrV 6140 alloy steel, it is one of the strongest bits in the industry.

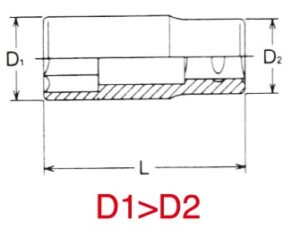

2402M (mm) | 2402A (inch) | D1 (mm) | D2 (mm) | L (mm) | g | pcs |
---|---|---|---|---|---|---|
3 | 5.5 | 11.8 | 25 | 10 | 50 | |
1/8 | 5.7 | 11.8 | 25 | 9 | 50 | |
3.5 | 6.1 | 11.8 | 25 | 10 | 50 | |
4 | 5/32 | 6.8 | 11.8 | 25 | 10 | 50 |
4.5 | 7.4 | 11.8 | 25 | 10 | 50 | |
5 | 3/16 | 8.0 | 11.8 | 25 | 10 | 50 |
5.5 | 7/32 | 8.7 | 11.8 | 25 | 11 | 50 |
6 | 9.2 | 11.8 | 25 | 11 | 50 | |
1/4 | 9.5 | 11.8 | 25 | 11 | 50 | |
7 | 9/32 | 10.8 | 11.8 | 25 | 11 | 50 |
8 | 5/16 | 11.4 | 12.0 | 25 | 11 | 50 |
9 | 11/32 | 13.0 | 12.2 | 25 | 12 | 50 |
10 | 3/8 | 14.5 | 13.0 | 25 | 16 | 50 |
13/32 | 14.5 | 13.0 | 25 | 16 | 50 | |
11 | 7/16 | 16.0 | 14.2 | 25 | 20 | 50 |
15/32 | 16.8 | 15.5 | 25 | 21 | 50 | |
12 | 17.0 | 15.5 | 25 | 22 | 50 | |
13 | 1/2 | 18.0 | 16.5 | 25 | 24 | 50 |
14 | 9/16 | 19.5 | 17.5 | 25 | 29 | 50 |
15 | 20.9 | 19.3 | 25 | 29 | 10 |
