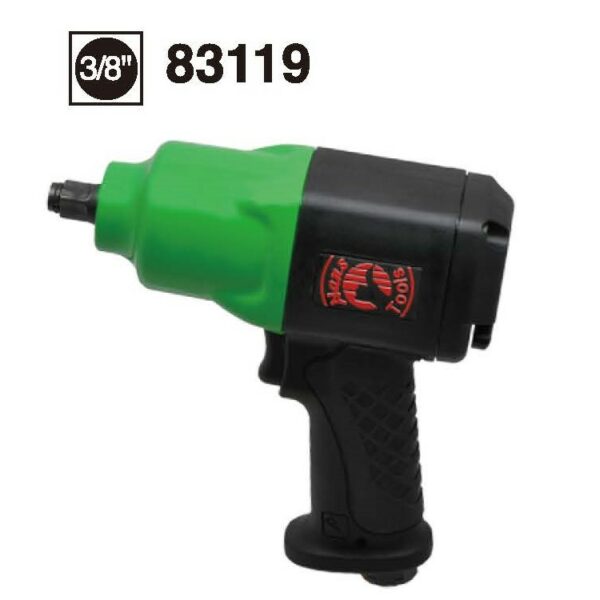

83119-Air Impact Wrench(Composite Cover)-3/8″Drive Heavy Duty
83119-Air Impact Wrench(Composite Cover)-3/8″Drive Heavy Duty
- Air Impact Wrench (Composite cover)- 3/8″ Drive
- Clé à chocs à air
- Klucz udarowy pneumatyczny
- Druckluft-Schlagschrauber
- Llave de impacto
- تأثير وجع الهواء
- ประแจผลกระทบอากาศ
- 工業級氣動沖擊扳手 超大出力 3/8″ 方頭
- TWIN-HAMMER, 雙鎚結構, 超大出力
| ITEM NO. | DRIVE | MAX TORQUE FT · LB(Nm) @ 5 SEC | MINI TORQUE FT · LB(Nm) | STDBOLT SIZE inch(mm) | FREE SPEED R.P.M. | MECHANISM |
|---|---|---|---|---|---|---|
| 83110 |  | 200 ft-lbs 271 N . m | 20-125 ft-lbs 27-170 N . m | 3/8"(M12) | 10000 | JUMBO HAMMER |
| 83119 | | 350 ft-lbs 475 N . m | 25-230 ft-lbs 34-312 N . m | 3/8"(M12) | 13000 | TWIN HAMMER |
| 84117 |  | 500 ft-lbs 678 N . m | 30-350 ft-lbs 41-475 N . m | 1/2"(M16) | 10000 | JUMBO HAMMER |
| 84115R | | 200 ft-lbs 271 N . m | 136 ft-lbs 1841 N . m | 1/2"(M14) | 10000 | JUMBO HAMMER |
| 84115 |  | 200 ft-lbs 271 N . m | 200 ft-lbs 271 N . m | 1/2"(M14) | 10000 | JUMBO HAMMER |
| EXHAUST | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR(PSI) | AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) |  KGS |  pcs |
|---|---|---|---|---|---|---|---|
| HANDLE W/MUFFLER | 2.5 | 6.2(90) | 1/4 | 3/8 | 5.5"(139) | 1.35 | 12 |
| HANDLE W/MUFFLER | 5.65.7 | 6.2(90) | 1/4 | 3/8 | 6"(152) | 1.52 | 12 |
| HANDLE W/MUFFLER | 4.7 | 6.2(90) | 1/4 | 3/8 | 4.7"(120) | 1.55 | 12 |
| HANDLE W/MUFFLER | 2.5 | 6.2(90) | 1/4 | 3/8 | 6"(152) | 1.35 | 12 |
| HANDLE W/MUFFLER | 2.5 | 6.2(90) | 1/4 | 3/8 | 5.5"(139) | 1.35 | 12 |
