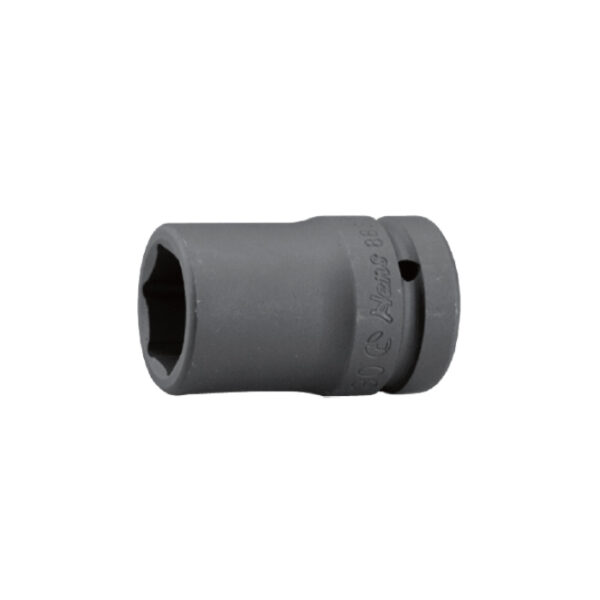

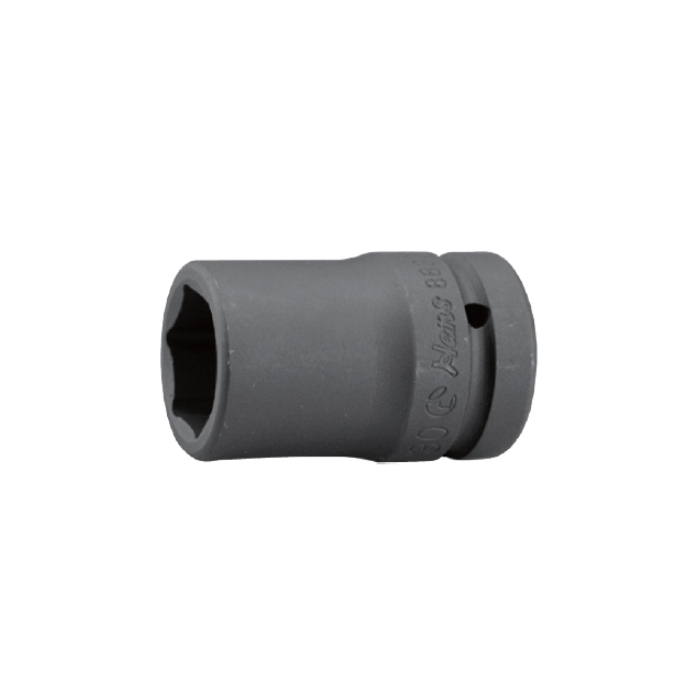

88304M/A 薄壁中長度的沖擊套筒 Impact Socket 6 Point- 1″ Drive

1″ Drive Semi Deep-Thin Wall Impact Socket-6 Point
Douilles impact parois fine-pour seemi profande
Gniazda udarowe cienkościenne – do półgłębokich
Dünnwandige Schlagnüsse – für halbtief
Vaso de muralla
مقابس صدمات رقيقة الجدار – شبه عميقة
เต้ารับกระแทกผนังแบบบาง – สำหรับกึ่งลึก
薄壁中長度的沖擊套筒
An-Lock Drive
DIN 3121- ISO 1174
Made by Chromium-molybdenum alloy steel (chrome. moly)
is an alloy used for high pressure and temperature use. It is used in oil and gas, energy, construction and the automotive industries because of its corrosion resistance and high-temperature and tensile strength.

An-Lock Drive® (Superb Torque) was founded with one mission in mind: to help their customers get the job done correctly, safely, and efficiently. With a foundation of quality and safety, An-Lock offer tools that are stronger and faster than other standard alternatives.
Made by Chromium-molybdenum alloy steel (chrome. moly)
is an alloy used for high pressure and temperature use. It is used in oil and gas, energy, construction and the automotive industries because of its corrosion resistance and high-temperature and tensile strength.

88304M (mm)	88304A (inch)	D1 (mm)	D2 9mm)	L (mm)	g	pcs
24	15/16	38	50	80	580	1
27	1-1/16	41	50	80	580	1
29	1-1/8	44	50	80	600	1
30	1-3/16	45	50	80	620	1
32	1-1/4	48	52	80	640	1
33	1-5/16	49	52	80	650	1
34		50	52	80	660	1
35	1-3/8	51	52	80	670	1
36		53	52	80	690	1
38	1-1/2	55	52	80	710	1
41	1-5/8	58	52	80	720	1
