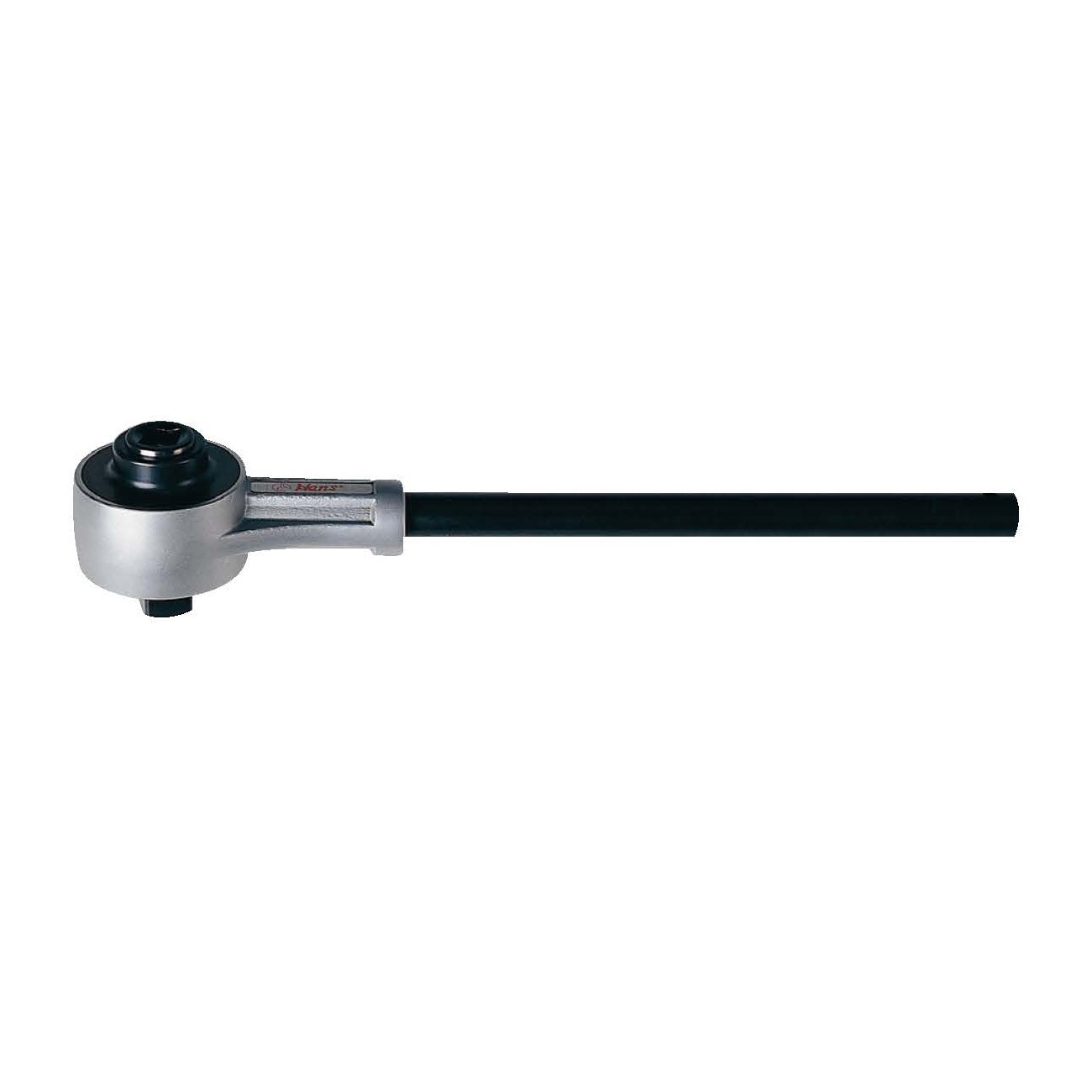

Torque Multiplier Tool Set With Lever Arm- 6190-3, 8190-3

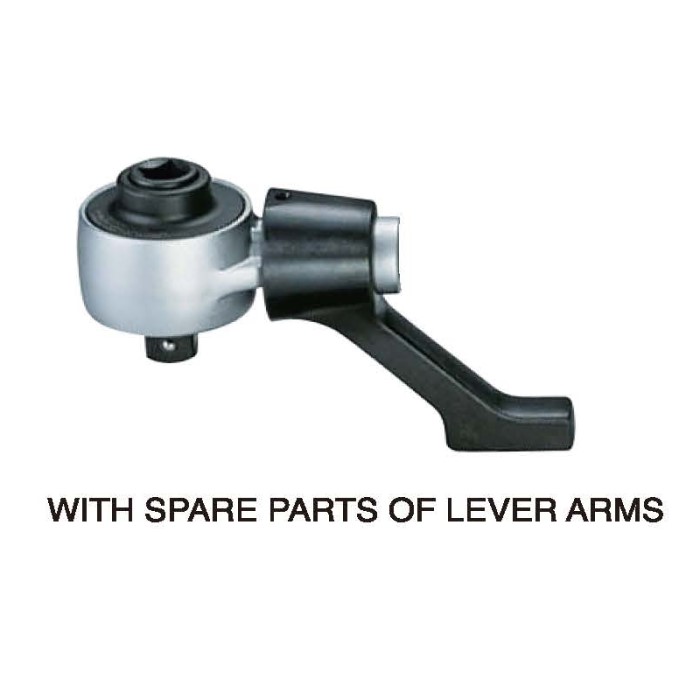

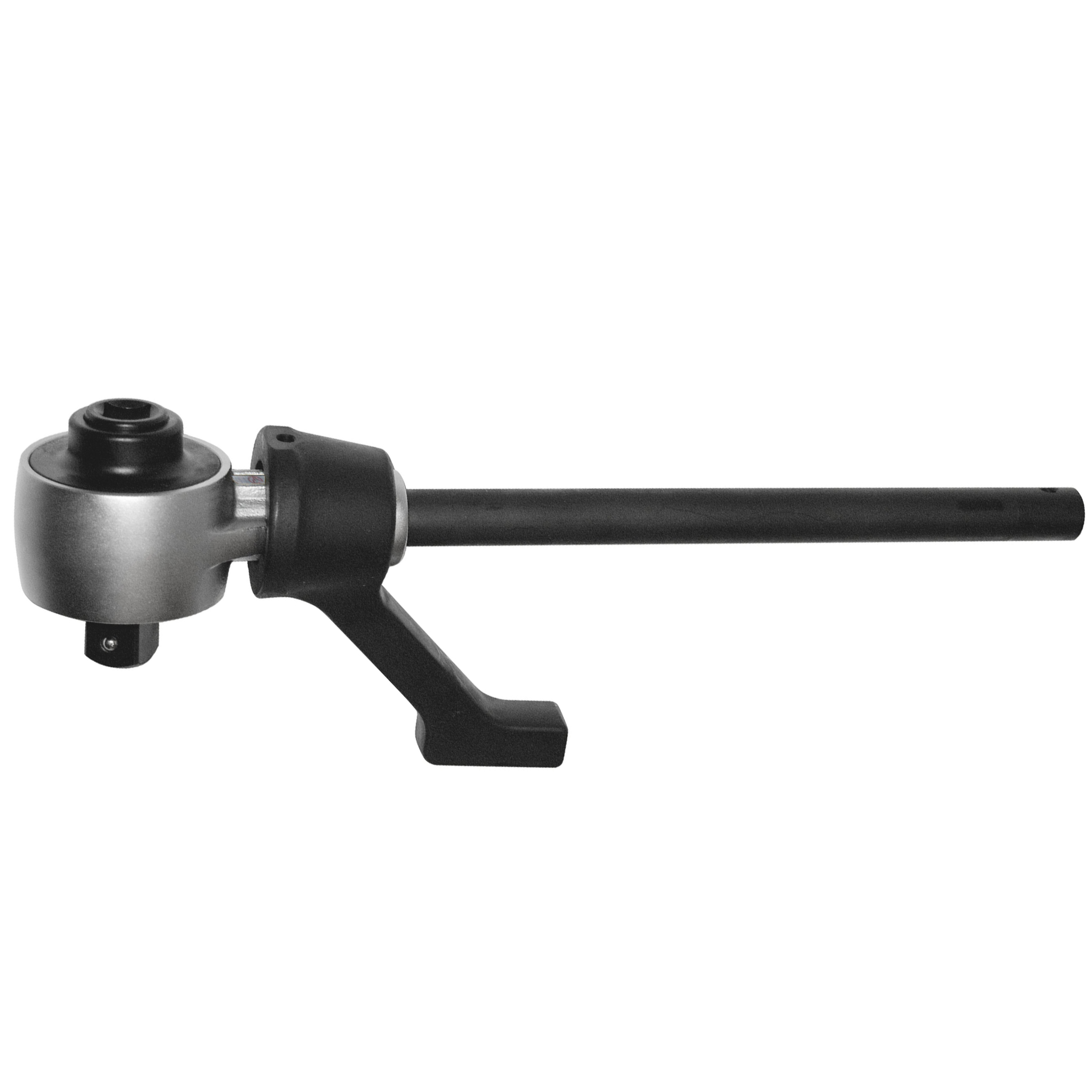

Torque Multiplier Tool Set With Lever Arm(3PCs)- 6190-3, 8190-3
- Multiplicateur de dynamometrique
- Mnożnik momentu obrotowego
- Drehmomentmultiplikator
- Multiplicando dinamométrica
- مضاعف عزم الدوران
- ตัวคูณแรงบิด
- 倍力器
| ITEM NO. | Female(母) (HORSE) | Male(公) (SQUARE) | GEAR RATIO | TORQUE RATIO |
|---|---|---|---|---|
| 6194-45 | 1/2" DR. | 3/4" DR. | 1 : 4 | 1 : 3.3 |
| 6194-95 | 1/2" DR. | 3/4" DR. | 1 : 9 | 1 : 6.5 |
| 8196-45 | 3/4" DR. | 1" DR. | 1 : 4 | 1 : 3.3 |
| 8194-125 | 1/2" DR. | 1" DR. | 1 : 12 | 1 : 9 |
| 8194-165 | 1/2" DR. | 1" DR. | 1 : 16 | 1 : 12 |
| 6190-3 | 1/2" DR. | 3/4" DR. | 1 : 3 | 1 : 3 |
| 8190-3 | 3/4" DR. | 1" DR. | 1 : 3 | 1 : 3 |
| W mm | H mm | L mm | INPUT TORQUE N · m | OUTPUT TORQUE N · m |  g |
|---|---|---|---|---|---|
| 70 | 78 | 428 | MAX : 303 | MAX : 1000 | 2250  |
| 82 | 97 | 480 | MAX : 231 | MAX : 1500 | 4200 |
| 96 | 111 | 500 | MAX : 758 | MAX : 2500 | 5660 |
| 82 | 110 | 480 | MAX : 222 | MAX : 2000 | 4500 |
| 96 | 134 | 500 | MAX : 208 | MAX : 2500 | 5850 |
| 73 | 84 | 425 | MAX : 500 | MAX : 1500 | 2350 |
| 91 | 113.5 | 500 | MAX : 1000 | MAX : 3000 | 4850 |
Torque Multiplier
Make work easier by using leverage which multiplies the Torque.
There are three ways simple machines make work easier:
- by increasing the distance through which force is applied,
- by changing the direction of applied force,
- by multiplying force of speed of the energy applied.
