1162M/A- 大型複合扳手 Jumbo Combination Wrench- (American Type)

SKU 1162M/A Categories 扳手類單品 Wrench- Individual, 扳手六角扳手 L型扳手 Wrench / L-Key Wrench, 扳手類 Wrench Tags 巨無霸, 扳手, 複合型扳手

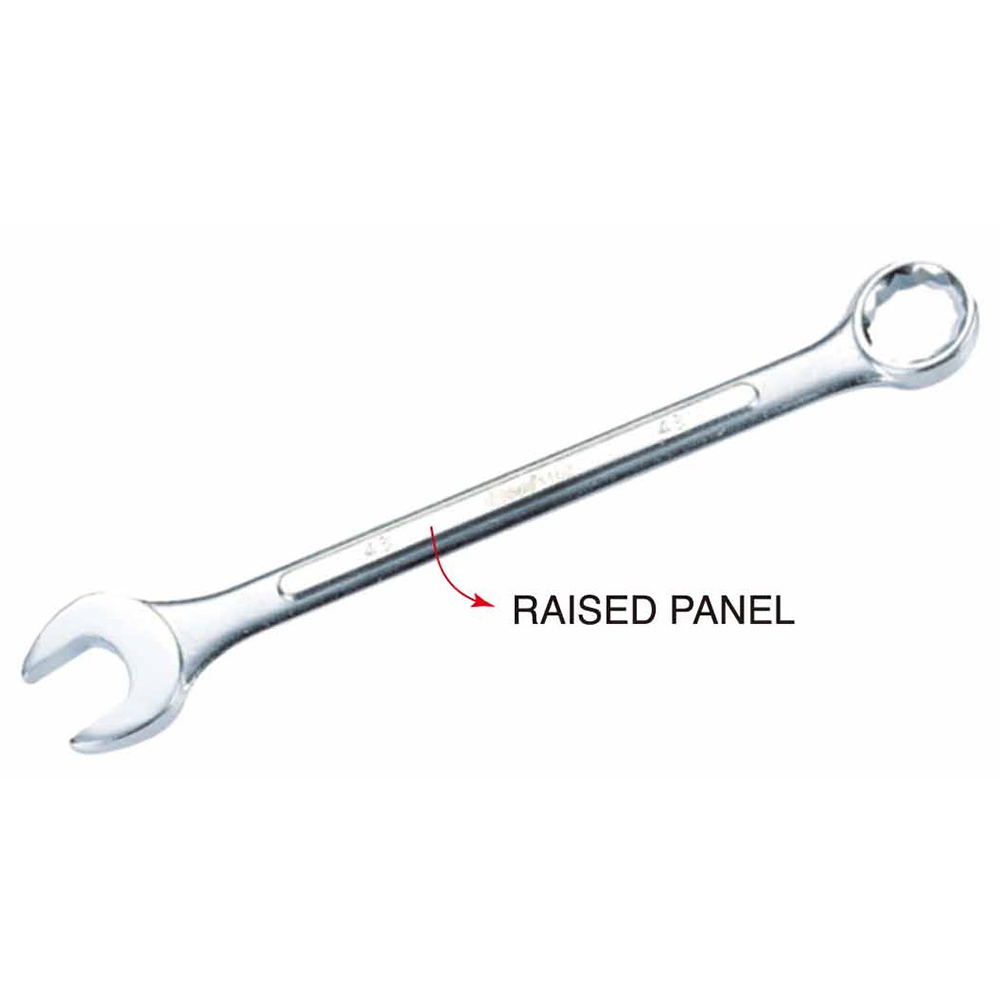

Jumbo Combination Wrench- American Type
Carbon Steel Made- ANSI standard
Clés mixtes-type Americain
Klucz uniwersalny — amerykański
Universalschlüssel – amerikanisch
Llaves combinada-tipo Americano
مفتاح عالمي – أمريكي
ประแจอเนกประสงค์ – American
大型複合扳手
DIN 3110- ISO 3318
An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.

1162M (mm)	W (mm)	W1 (mm)	T (mm)	T1 (mm)	L (mm)	g	pcs
6	15.5	10.6	3.8	5	92	20	12
7	16	11.5	4	5.5	98	24	12
8	20	12.5	4.2	5.5	102	30	12
9	22	14	4.5	6	116	34	12
10	23	16.5	4.8	7	123	40	12
11	24	17.5	5	7	131	46	12
12	26	18.5	5.5	8	138	59	12
13	27	19.5	5.5	8	148	62	12
14	30	22	6.5	8.5	168	82	12
15	33	24.5	7	9	190	118	12
16	33	24.5	7	9	190	118	12
17	37	26.5	7.3	10	210	142	12
18	37	26.5	7.3	10	210	142	12
19	40	28.8	8	11	230	182	12
20	40	28.8	8	11	230	182	12
21	44	31	9	11.5	257	222	12
22	46	33.5	9.3	12	280	300	6
23	46	33.5	9.3	12	280	300	6
24	49	35.5	9.7	12.5	310	366	6
25	51.5	37.8	10	13	330	456	6
26	51.5	37.8	10	13	330	456	6
27	57	40	10.5	13.5	355	600	6
28	57	40	10.5	13.5	355	600	6
29	59.5	43	12	15	375	659	6
30	59.5	43	12	15	375	659	6
31	64.1	49	12.5	15.5	410	800	6
32	64.1	49	12.5	15.5	410	800	6
33	63	48	12	14	415	768	30
34	63	48	12	15	415	768	30
35	65	54	13	15	425	900	25
36	65	54	13	16	425	900	25
37	65	56	13	16	425	900	25
38	70	56	14	17	450	1025	20
40	77.5	61	15	17.3	495	1500	15
41	77.5	61	15	17.3	495	1500	15
42	77.5	61	15	17.3	495	1500	15
43	83	63	15	17.3	495	1500	15
44	83	65	15	19	495	1500	15
45	83	65	15	19	495	1500	15
46	83	65	15	19	495	1500	15
48	95	74	18	23	560	2150	10
50	95	74	18	23	560	2150	10
55	115	88.6	24	29.5	665	4610	2
60	125	92	26	32	755	6190	2
65	125	92	26	32	760	6190	2

1162A (inch)	W (mm)	W1 (mm)	T (mm)	T1 (mm)	L (mm)	g	pcs
(1/4)	15.5	10.6	3.8	5	92	20	12
(5/16)	20	12.5	4.2	5.5	102	30	12
(3/8)	22	14	4.5	6	116	34	12
(7/16)	24	17.5	5	7	131	46	12
(1/2)	27	19.5	5.5	8	148	62	12
(9/16)	30	22	6.5	8.5	168	82	12
(5/8)	33	24.5	7	9	190	118	12
(11/16)	37	26.5	7.3	10	210	142	12
(3/4)	40	28.8	8	11	230	182	12
(13/16)	44	31	9	11.5	257	222	12
(7/8)	46	33.5	9.3	12	280	300	6
(15/16)	49	35.5	9.7	12.5	310	366	6
(1")	51.5	37.8	10	13	330	456	6
(1-1/16)	57	40	10.5	13.5	355	600	6
(1-1/8)	59.5	43	12	15	375	659	6
(1-1/4)	64.1	49	12.5	15.5	410	800	6
(1-5/16)	63	48	12	14	415	768	30
(1-3/8)	65	54	13	15	425	900	25
(1-7/16)	65	56	13	16	425	900	25
(1-1/2)	70	56	14	17	450	1025	20
(1-9/16)	77.5	61	15	17.3	495	1500	15
(1-5/8)	77.5	61	15	17.3	495	1500	15
(1-11/16)	83	65	15	19	495	1500	15
(1-3/4)	83	65	15	19	495	1500	15
(1-13/16)	83	65	15	19	495	1500	15
(1-7/8)	95	74	18	23	560	2150	10
2"	95	74	18	23	560	2150	10
(2-1/16)	113	86	24	29.5	660	4600	2
(2-3/16)	115	88.6	24	29.5	665	4610	2
(2-3/8)	125	92	26	32	755	6190	2
(2-7/16)	125	92	26	32	760	6190	2
(2-1/2)	125	92	26	32	760	6190	2
