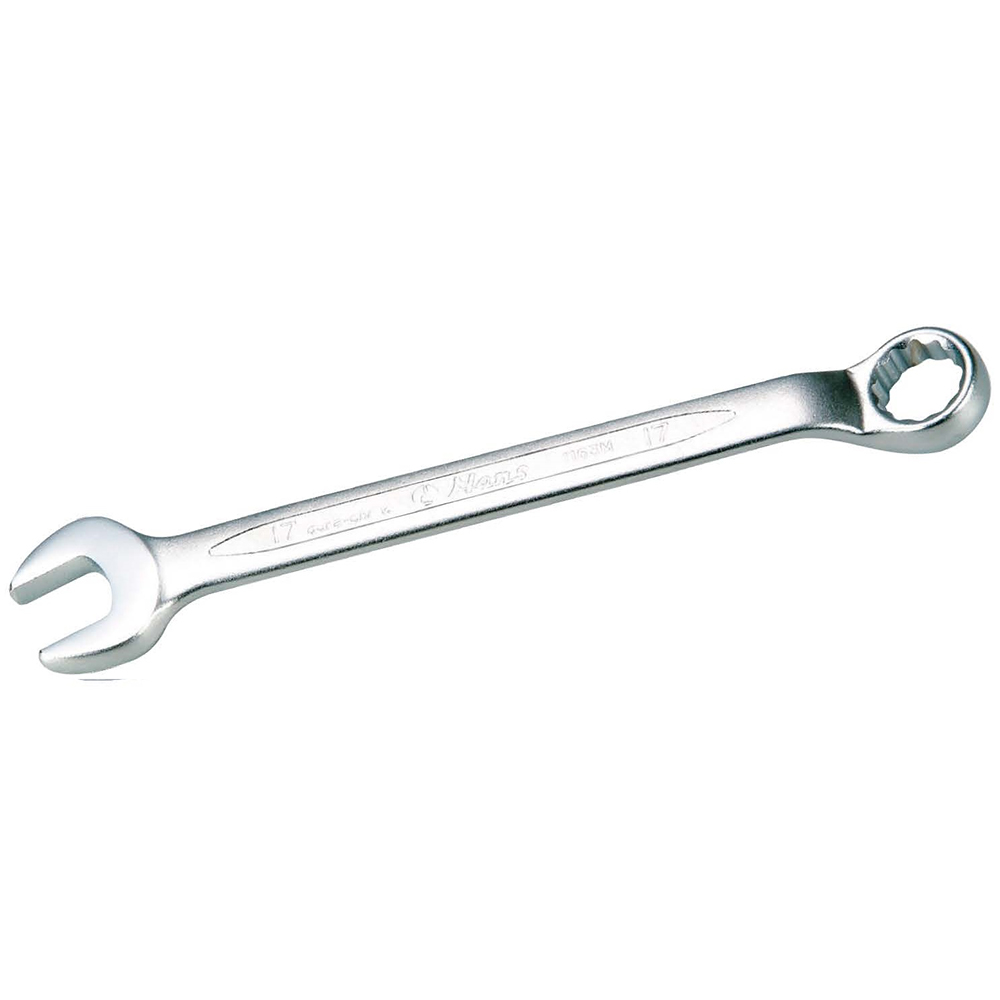

1163M/A- Combination Wrench- 45° Offset- German Type

Combination Wrench- 45° Offset- German Type
Clés mixtes- 45° Offset
Pochylenie klucza płasko-oczkowego 45°
Maulschlüssel-Wölbung 45°
Llaves combinada- 45° Offset
مفتاح ربط حدبة 45 درجة
แคมเบอร์ประแจรวม 45°
德式輕薄柄, 兩用扳手彎度45°

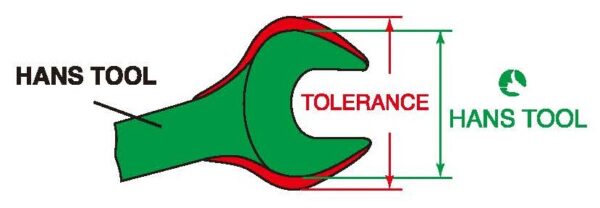

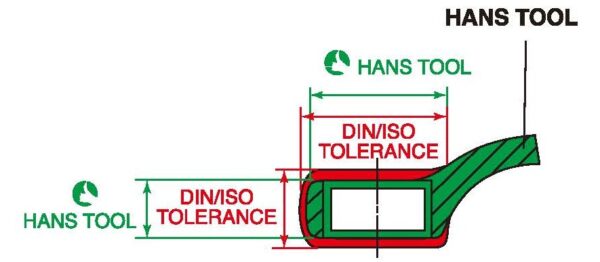

DIN 3113- ISO 3318, ISO 7738
An-Lock Drive® (Superb Torque) has one goal in mind and that is to help you get the job done right. With features like heads that reach tight spaces, serviceable reversing levers, and grips that prevent slippage, An-Lock makes it easier for you to get the job done faster and right.

1163M (mm)	W (mm)	W1 (mm)	T (mm)	T1 (mm)	L (mm)	g	pcs
6	17	12	4.8	6	115	24	12
7	17	12	4.8	6	115	24	12
8	19.5	13.2	5	6.3	125	32	12
9	21	15	5.2	6.5	130	40	12
10	21.5	16	5.8	6.5	136.4	46	12
11	23	18	5.8	7	146.2	52	12
12	25	19.5	6	7.5	156.2	66	12
13	28	20.5	6.3	8	166	76	12
14	30	22.5	6.9	9	175	96	12
15	33.5	25	7.2	10	195	126	12
16	33.5	25	7.2	10	195	126	12
17	36.5	27	7.6	11	215	172	12
18	36.5	27	7.6	11	215	177	12
19	40.5	29	8	11.5	235	218	12
20	40.5	29	8	11.5	235	218	12
21	43.5	32	8.5	12	255	234	12
22	46.5	33.5	9	12.5	270	284	12
23	46.5	33.5	9	12.5	270	284	12
24	49	35.5	9.5	13.2	285	352	6
25	52	37.5	10	14	300	404	6
26	52	37.5	10	14	300	404	6
27	56	40.5	10.5	14.5	320	462	6
28	56	40.5	10.5	14.5	320	462	6
29	60.5	44	11	15	340	525	6
30	60.5	44	11	15	340	525	6
32	64	46	11.5	15.5	365	635	6

1163A (inch)	W (mm)	W1 (mm)	T (mm)	T1 (mm)	L (mm)	g	pcs
(1/4)	17	12	4.8	6	115	24	12
(5/16)	19.5	13.2	5	6.3	125	32	12
(3/8)	21.5	16	5.8	6.5	136.4	46	12
(7/16)	23	18	5.8	7	146.2	52	12
(1/2)	28	20.5	6.3	8	166	76	12
(9/16)	30	22.5	6.9	9	175	96	12
(5/8)	33.5	25	7.2	10	195	126	12
(11/16)	36.5	27	7.6	11	215	172	12
(3/4)	40.5	29	8	11.5	235	218	12
(13/16)	43.5	32	8.5	12	255	234	12
(7/8)	46.5	33.5	9	12.5	270	284	12
(15/16)	49	35.5	9.5	13.2	285	352	6
(1")	52	37.5	10	14	300	404	6
(1-1/16)	56	40.5	10.5	14.5	320	462	6
(1-1/8)	60.5	44	11	15	340	525	6
(1-1/4)	64	46	11.5	15.5	365	635	6
