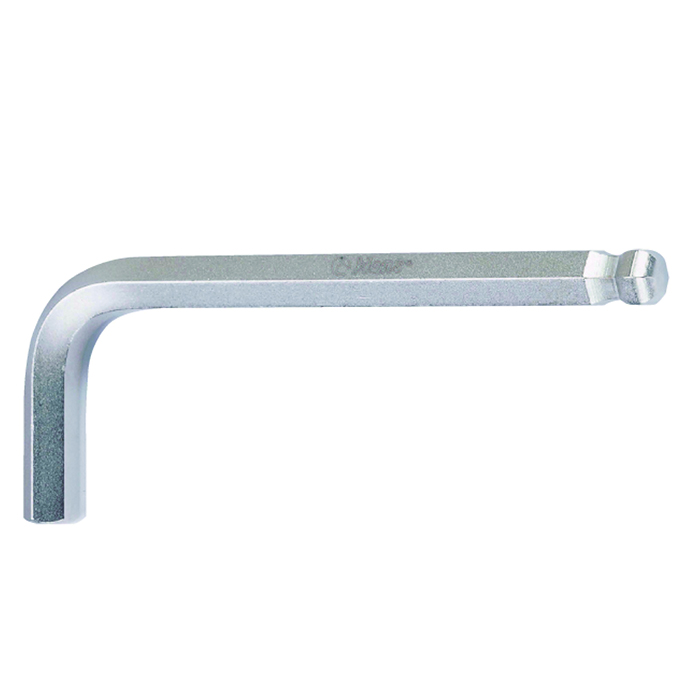

1774M/A-球型與六角扳手 Ball-Point and Hex-Key Wrench
1774M/A- Ball-Point and Hex-Key Wrench (Standard Length Arm)
- Clés mâles-à tête sphérique
- Klucz sześciokątny z łbem okrągłym
- Rundkopf-Sechskantschlüssel
- Llaves hexagonales con cabeza esférica
- وجع عرافة رأس مستدير
- ประแจหกเหลี่ยมหัวกลม
- DIN-ISO 2936
- Made by S2 steel material
- 球型, 六角兩用L型扳手
- Packing Details from the factory of HansTools
- What’s the ball-point in Hex Key wrench for? The ball end of the Hex Key gives you more freedom of movement while turning bolts and screws, enabling you to reach an offset angle at a 25-degree slant. This makes it easier to feel your way towards the right position without having to hold up both sides of the key. So what is the ball point in Hex Key wrench for?
- Answer: To give a better grip which helps you get to the right position quicker.
| SIZE mm | SIZE inch | ARM (L1) | ARM (L2) |  g |
|---|---|---|---|---|
| 1.3 | 12 | 40 | 0.6 | |
| 1.5 | (1/16) | 14 | 45 | 0.9 |
| 2 | (5/64) | 16 | 50 | 1.8 |
| 2.5 | (3/32) | 18 | 56 | 3.2 |
| (7/64) | 19 | 59 | 4 | |
| 3 | (1/8) | 20 | 63 | 5 |
| 3.5 | (9/64) | 22 | 65 | 7 |
| 4 | (5/32) | 25 | 70 | 10 |
| 4.5 | 26 | 75 | 14 | |
| 5 | (3/16) | 28 | 80 | 18 |
| 5.5 | (7/32) | 30 | 85 | 24 |
| 6 | (1/4) | 32 | 90 | 33 |
| 7 | (9/32) | 34 | 95 | 43 |
| 8 | (5/16) | 36 | 100 | 60 |
| 9 | 38 | 106 | 105 | |
| 10 | (3/8) | 40 | 112 | 170 |
| 12 | (1/2) | 45 | 125 | |
| 14 | (9/16) | 56 | 140 | 265 |
