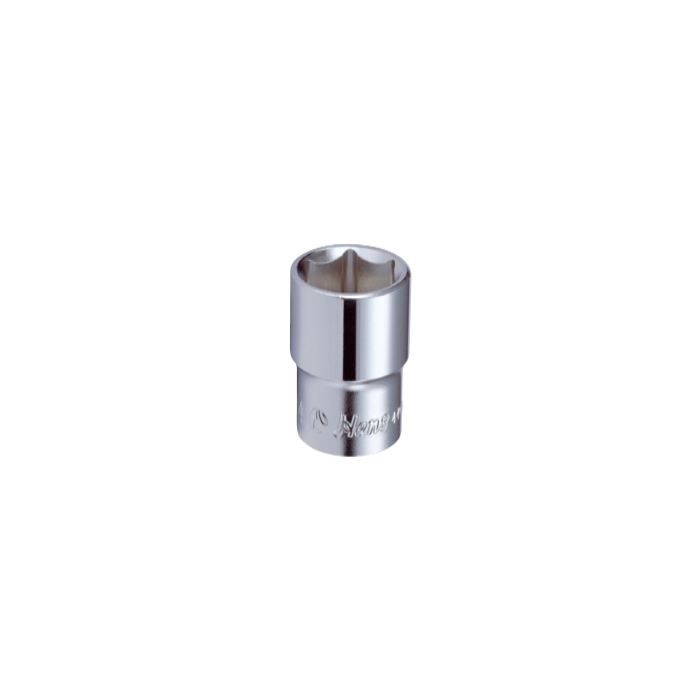

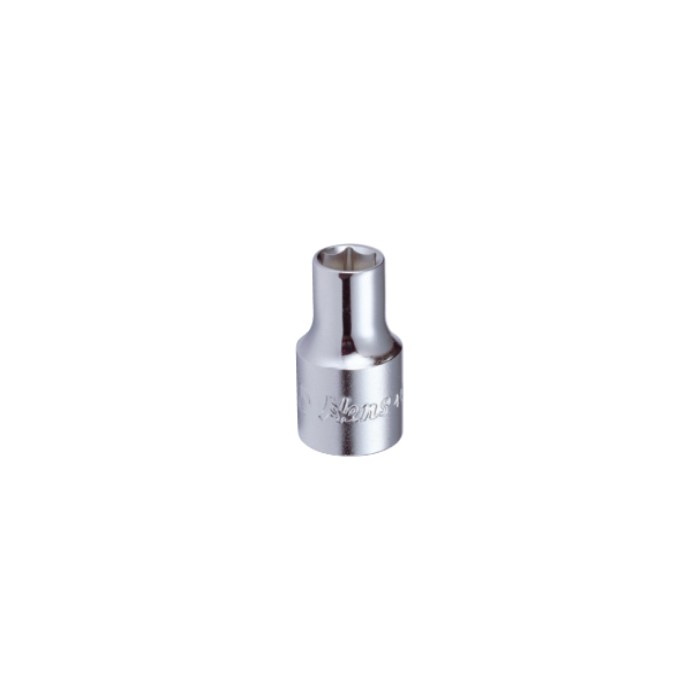

2400M/A- 1/4″ Drive Hand Socket (Manual) 6 Point
SKU
2400M
Categories 手動套筒 Socket-1/4"DR., 套筒 棘輪扳手 及套裝Socket / Ratchet / Combo (Socket Wrench Set), 手動套筒 Socket
Tags 1/4"DR, 6角-接觸點, 手動套筒
2400M/A- 1/4″ Drive Hand Socket (Manual) 6 Point
- 1/4″ DRIVE HAND SOCKET (MANUAL) 6 POINT
- vasos de surface drive
- douilles 6 pans surface drive
- unidade de superfície douilles 6 panelas
- douilles 6 pfannen oberflächenantrieb
- douilles 6 casseroles surface drive
- ไดรฟ์พื้นผิว douilles 6 กระทะ
- DIN 3120, ISO 1174
- DIN 3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 六角-十二角
Feature
- An-Lock Drive® (Superb Torque) is built to do one thing: help you get that job done right. has only one thing on its mind: helping you get the job done with ease, safety, and quality. With its many smart features such as reversing levers, stronger grips, and deep-reaching heads, it can get to those difficult places or those hard-to-reach nuts or bolts with incredible precision. Made from Chrome Vanadium-CrV 6140 alloy steel, it is one of the strongest bits in the industry.
2400M (mm) | 2400A (inch) | D1 (mm) | D2 (mm) | L (mm) | g | pcs |
---|---|---|---|---|---|---|
3 | 5.5 | 11.8 | 25 | 10 | 50 | |
1/8 | 5.7 | 11.8 | 25 | 9 | 50 | |
3.5 | 6.1 | 11.8 | 25 | 10 | 50 | |
4 | 5/32 | 6.8 | 11.8 | 25 | 10 | 50 |
4.5 | 7.4 | 11.8 | 25 | 10 | 50 | |
5 | 3/16 | 8.0 | 11.8 | 25 | 10 | 50 |
5.5 | 7/32 | 8.7 | 11.8 | 25 | 11 | 50 |
6 | 9.2 | 11.8 | 25 | 11 | 50 | |
1/4 | 9.5 | 11.8 | 25 | 11 | 50 | |
7 | 9/32 | 10.8 | 11.8 | 25 | 11 | 50 |
8 | 5/16 | 11.4 | 12.0 | 25 | 11 | 50 |
9 | 11/32 | 13.0 | 12.2 | 25 | 12 | 50 |
10 | 3/8 | 14.5 | 13.0 | 25 | 16 | 50 |
13/32 | 14.5 | 13.0 | 25 | 16 | 50 | |
11 | 7/16 | 16.0 | 14.2 | 25 | 20 | 50 |
15/32 | 16.8 | 15.5 | 25 | 21 | 50 | |
12 | 17.0 | 15.5 | 25 | 22 | 50 | |
13 | 1/2 | 18.0 | 16.5 | 25 | 24 | 50 |
14 | 9/16 | 19.5 | 17.5 | 25 | 29 | 50 |
15 | 20.9 | 19.3 | 25 | 29 | 10 |
