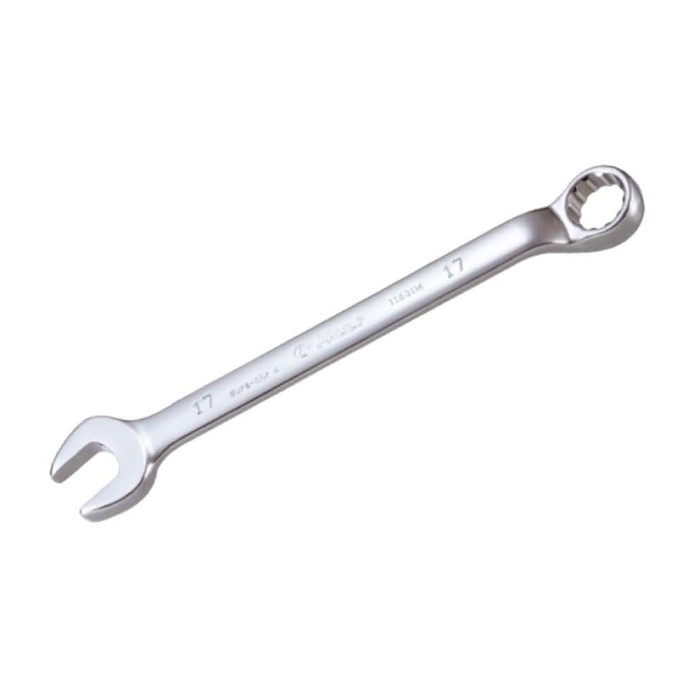

11631M- Single Offset Combination Wrench (12 Point)
Single Offset Combination Wrench (12 Point)
- Clés mixtes-unique offset 45°
- Pochylenie klucza płasko-oczkowego 45°
- Maulschlüssel-Wölbung 45°
- Llaves combinada-única compensación 45°
- مفتاح ربط حدبة 45 درجة
- แคมเบอร์ประแจรวม 45°
- 新型多功能單曲45°複合扳手
| 11631M (mm) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|---|
| 6 | 17 | 12 | 4.8 | 6 | 115 | 24 | 12 |
| 7 | 17 | 12 | 4.8 | 6 | 115 | 24 | 12 |
| 8 | 19.5 | 13.2 | 5 | 6.3 | 125 | 32 | 12 |
| 9 | 21 | 15 | 5.2 | 6.5 | 130 | 39.6 | 12 |
| 10 | 21.5 | 16 | 5.8 | 6.5 | 136.4 | 46 | 12 |
| 11 | 23 | 18 | 5.8 | 7 | 146.2 | 52 | 12 |
| 12 | 25 | 19.5 | 6 | 7.5 | 156.2 | 66 | 12 |
| 13 | 28 | 20.5 | 6.3 | 8 | 166 | 76 | 12 |
| 14 | 30 | 22.5 | 6.9 | 9 | 175 | 96 | 12 |
| 15 | 33.5 | 25 | 7.2 | 10 | 195 | 126 | 12 |
| 16 | 33.5 | 25 | 7.2 | 10 | 195 | 126 | 12 |
| 17 | 36.5 | 27 | 7.6 | 11 | 215 | 172 | 12 |
| 18 | 36.5 | 27 | 7.6 | 11 | 215 | 177 | 12 |
| 19 | 40.5 | 29 | 8 | 11.5 | 235 | 218 | 12 |
| 20 | 40.5 | 29 | 8 | 11.5 | 235 | 218 | 12 |
| 21 | 43.5 | 32 | 8.5 | 12 | 255 | 234 | 12 |
| 22 | 46.5 | 33.5 | 9 | 12.5 | 270 | 284 | 12 |
| 23 | 46.5 | 33.5 | 9 | 12.5 | 270 | 284 | 12 |
| 24 | 49 | 33.5 | 9.5 | 13.2 | 285 | 352 | 6 |
| 25 | 52 | 37.5 | 10 | 14 | 300 | 397 | 6 |
| 26 | 52 | 37.5 | 10 | 14 | 300 | 397 | 6 |
| 27 | 56 | 40.5 | 10.5 | 14.5 | 320 | 462 | 6 |
| 28 | 56 | 40.5 | 10.5 | 14.5 | 320 | 462 | 6 |
| 29 | 60.5 | 44 | 11 | 15 | 340 | 525 | 6 |
| 30 | 60.5 | 44 | 11 | 15 | 340 | 525 | 6 |
| 31 | 64 | 46 | 11.5 | 15.5 | 365 | 635 | 6 |
| 32 | 64 | 46 | 11.5 | 15.5 | 365 | 635 | 6 |
